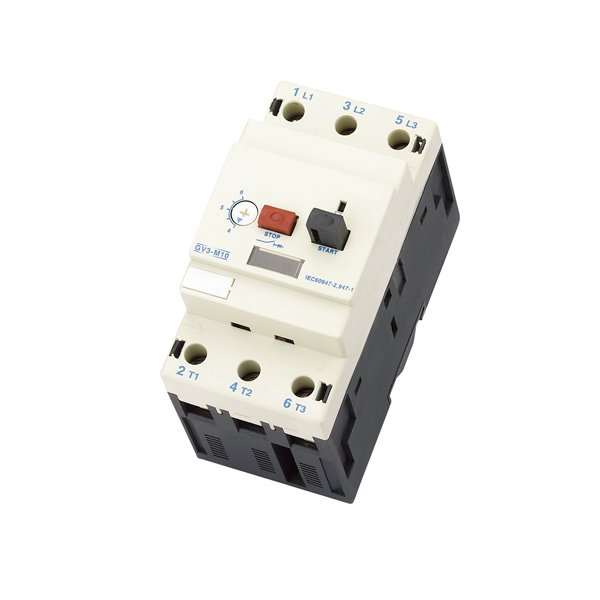

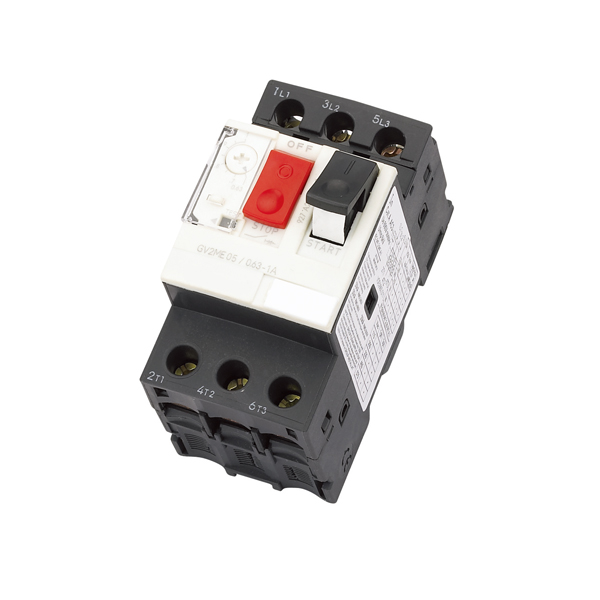

DZ808(GV2, GV3) the series electric motor protection circuit
breaker, uses the modular design, the contour is artistic,
the volume is small, breakes protects, inside sets Hot relay,
the function is strong, the versatility is good. The DZ808
series conforms to IEC60947.2 and IEC60947-4.1 as well as
the EN60947-1 standard. The switch and the contact device may
compose the electric motor is direct starts. The DZ808 series
outer covering protection rankmay achieve IP65. This series
pooled three types model product: DZ808(GV2-RS) is the electric
motor belt thermomagnetism protection circuit breaker which
the changover switch con-trols; DZ808(GV2-LS, LE) is the electric
motr belt magnetism protection circuit breaker which the
change- over switch controls(does not bring hot protection).
|
Type
|
The standard power of three-phase electromotor kW
|
Rated current a
djustable range
|
|
220V
|
380V
|
415V
|
440V
|
500V
|
660V
|
|
DZ808-32(M01/RS01)
|
-
|
-
|
-
|
-
|
-
|
-
|
0.1-0.16
|
|
DZ808-32(M02/RS02)
|
-
|
-
|
-
|
-
|
-
|
-
|
0.16-0.25
|
|
DZ808-32(M03/RS03)
|
-
|
-
|
-
|
-
|
-
|
-
|
0.25-0.4
|
|
DZ808-32(M04/RS04)
|
-
|
-
|
-
|
-
|
-
|
0.37
|
0.4-0.63
|
|
DZ808-32(M05/RS05)
|
-
|
-
|
-
|
0.37
|
0.37
|
0.55
|
0.63-1
|
|
DZ808-32(M06/RS06)
|
-
|
0.37
|
-
|
0.55
|
0.75
|
1.1
|
1-1.6
|
|
DZ808-32(M07/RS07)
|
0.37
|
0.75
|
0.75
|
1.1
|
1.1
|
1.5
|
1.6-2.5
|
|
DZ808-32(M08/RS08)
|
0.75
|
1.5
|
1.5
|
1.5
|
2.2
|
3
|
2.5-4
|
|
DZ808-32(M10/RS10)
|
1.1
|
2.2
|
2.2
|
3
|
3.7
|
4
|
4-6.3
|
|
DZ808-32(M14/RS14)
|
2.2
|
4
|
4
|
4
|
5.5
|
7.5
|
6-10
|
|
DZ808-32(M16/RS16)
|
3
|
5.5
|
5.5
|
7.5
|
7.5
|
9
|
9-14
|
|
DZ808-32(M20/RS20)
|
4
|
7.5
|
9
|
9
|
9
|
11
|
13-18
|
|
DZ808-32(M21/RS21)
|
5.5
|
11
|
11
|
11
|
11
|
15
|
17-23
|
|
DZ808-32(M22/RS22)
|
5.5
|
11
|
11
|
11
|
15
|
18.5
|
20-25
|
|
DZ808-32(M32/RS32)
|
7.5
|
15
|
15
|
15
|
18.5
|
26
|
24-32
|
|
DZ808-80(M06)
|
-
|
0.37
|
-
|
0.55
|
0.75
|
1.1
|
1-1.6
|
|
DZ808-80(M07)
|
0.37
|
0.75
|
1.1
|
1.1
|
1.1
|
1.5
|
1.6-2.5
|
|
DZ808-80(M08)
|
0.75
|
1.5
|
1.5
|
1.5
|
2.2
|
3
|
2.5-4
|
|
DZ808-80(M10)
|
1.1
|
2.2
|
2.2
|
3
|
3.7
|
4
|
4-6
|
|
DZ808-80(M14)
|
2.2
|
4
|
4
|
4
|
5.5
|
7.5
|
6-10
|
|
DZ808-80(M20)
|
4
|
7.5
|
7.5
|
7.5
|
10
|
11
|
10-16
|
|
DZ808-80(M25)
|
5.5
|
11
|
11
|
11
|
15
|
18.5
|
16-25
|
|
DZ808-80(M40)
|
11
|
18.5
|
18.5
|
22
|
25
|
33
|
25-40
|
|
DZ808-80(M63)
|
15
|
30
|
33
|
33
|
40
|
55
|
40-63
|
|
DZ808-80(M80)
|
22
|
40
|
45
|
45
|
55
|
63
|
56-80
|
