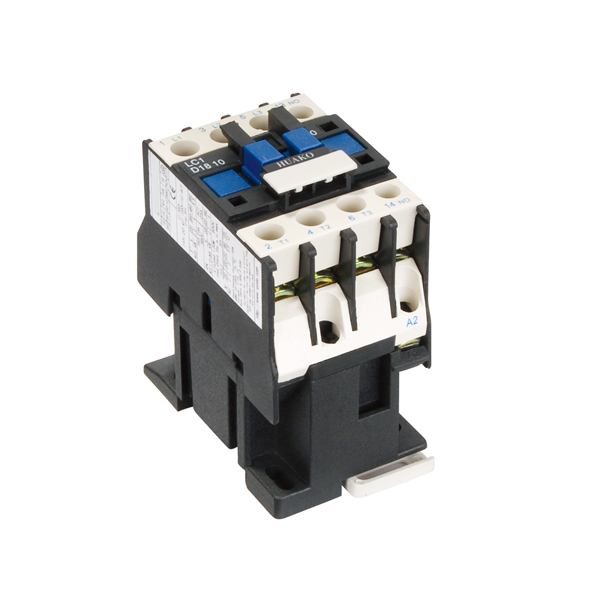

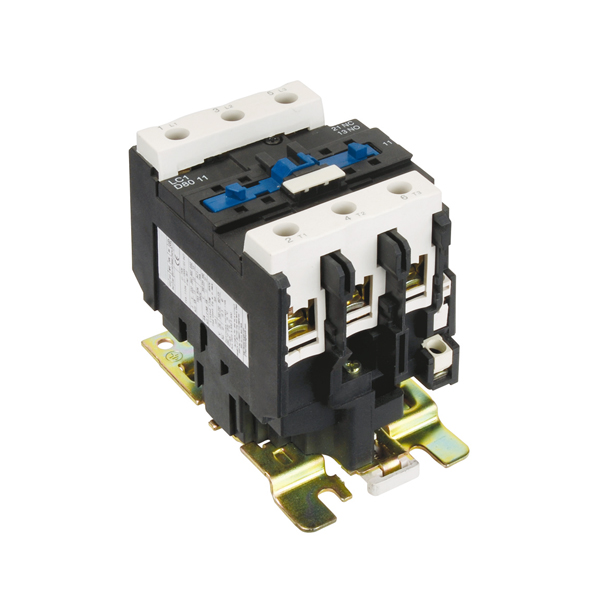

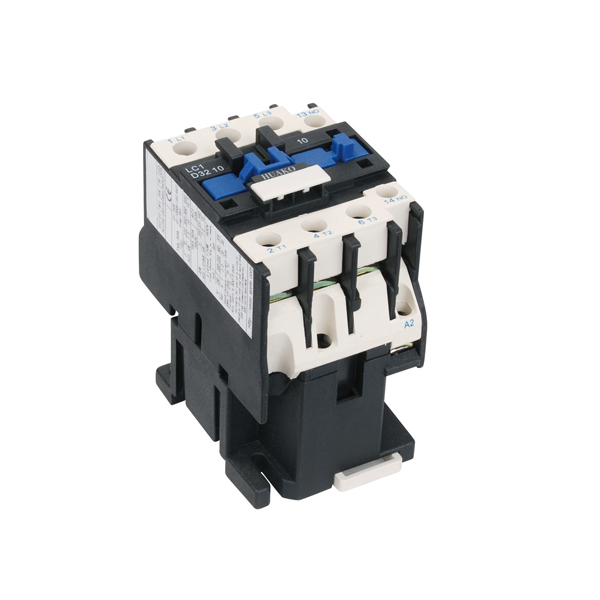

CJX2(LC1-D) series AC contactor (simplified as contactor
in the following) is suitable for using in the circuit up
to the rated voltage 660V AC 50Hz or 60Hz, rated current
95A, for making and breaking and frequent starting,
controlling the AC motor, Conbined with the auxiliary
contact group, air delayer, machine interlocking device
etc, it is combined into the delay contactor mechanical
interlocking contactor, dtar-detta starter, with the
thermal relay, it is combined into the electromagnetic starter.
|
Type
|
(v)Rated insulatio voltage
|
Ith(A) Conventional thermal current
|
380VAC(A) Rared operational current
|
Controlled power(kw)
|
Number of the contacts
|
Note
|
|
220V
|
380V
|
415V
|
440V
|
660V
|
CJX2-0910
-901
|
660
|
25
|
9
|
2.2
|
4
|
4
|
4
|
5.5
|
3P+1NO 3P+1NC
|
The installation of
the relays can use
two screws and also use the
35mm installation rail
|
CJX2-1210
-1201
|
25
|
12
|
3
|
5.5
|
5.5
|
5.5
|
7.5
|
3P+1NO
3P+1NC
|
CJX2-1610
-1601
|
32
|
16
|
4
|
7.5
|
9
|
9
|
10
|
3P+1NO
3P+1NC
|
CJX2-2510
-2501
|
40
|
25
|
5.5
|
11
|
11
|
11
|
15
|
3P+1NO
3P+1NC
|
CJX2-3210
-3201
|
50
|
32
|
7.5
|
15
|
15
|
15
|
18.5
|
3P+1NO
3P+1NC
|
|
CJX2-4011
|
60
|
40
|
11
|
18.5
|
22
|
22
|
30
|
3P+1NO
+1NC
|
The installation of the relay can
use three screws and also use
the 75mm or 35mm
installtion rail
|
|
CJX2-5011
|
80
|
50
|
15
|
22
|
25
|
25
|
33
|
|
CJX2-6311
|
80
|
63
|
18.5
|
30
|
37
|
37
|
37
|
|
CJX2-8011
|
125
|
80
|
22
|
37
|
45
|
45
|
45
|
|
CJX2-9511
|
125
|
95
|
25
|
45
|
45
|
45
|
45
|
