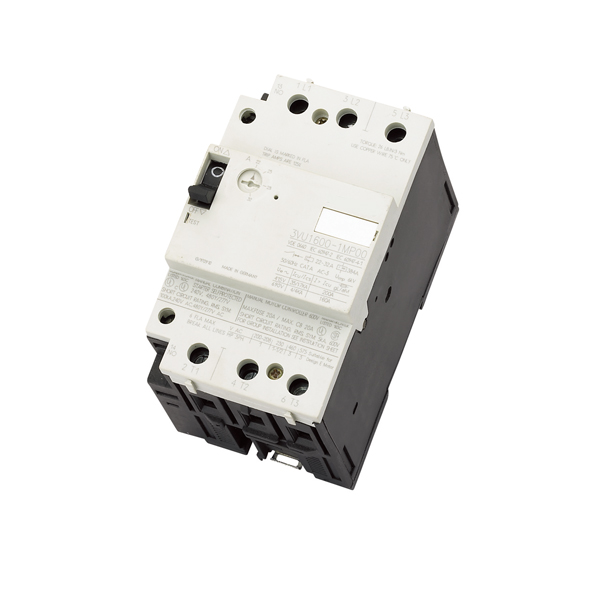

DZ208(3VU) Circuit breakers it introduce the now developed
products made by Simens replacing SeriesDZ108(3VE), The
series products is composed of DZ208(3VU13) and DZ208-63
(3VU16) it's applicable circuit of 50Hz(60Hz),rated in
sulation Voltage 690V, Voltage underAC 750V, rated operating
cuttent 0.1-52A which is used for protecting the motor against
overload protection, short-circuit protection and open-phase
protection, it can also be used for starting and breaking the
starter of motor, and the circuit protection in the circuit of 63A
|
Rated Current(A)
|
Eetromotor export power
|
Line up current
|
Order Name
|
|
|
Heat overloading dobuckleware
|
|
Instaneous over current
doffbuckle ware
|
|
A
|
kW
|
A
|
A DZ208-63
|
|
1.6
|
0.37/0.55
|
1-1.6
|
19 -1MG00
|
|
2.4
|
0.75
|
1.6-2.4
|
29 -1MH00
|
|
4
|
1.1/1.5
|
2.4-4
|
48 -1MJ00
|
|
6
|
2.2
|
4-6
|
72 -1MK00
|
|
10
|
3-4
|
6-10
|
120 -1ML00
|
|
16
|
5.5/7.5
|
10-16
|
190 -1MM00
|
|
25
|
11
|
16-25
|
300 -1MN00
|
|
32
|
15
|
22-23
|
380 -1MP00
|
|
40
|
18.5
|
28-40
|
480 -1MQ00
|
|
52
|
22
|
36-52
|
600 -1MR00
|
|
63
|
|
45-63
|
600 -1LS00
|
