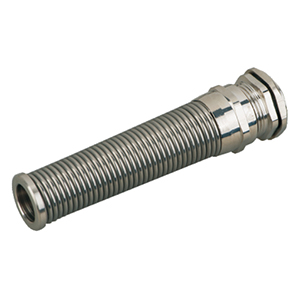

Material: Brass with nickel plated ( CuZn39Pb3, ASTM C37800, JIS C37800 )
Anti-fold spring: stainless steel 1.1310/ASTM301/SUS301
Clamp jaw: Nylon PA.UL94-V0
Sealing element: NBR
Thread Type: PG according to DIN 40430
Test Standard: EN50262 /EN62444 /UL51 4B
Protection class: IP68/IP69K(the wire/cable is in clamping range.and assemble 0-Ring on the groove)
Range of temperature: -40℃to+100℃
UL/CSA Cert ID: E343544
Application: used to protect the cable outlet to prevent excessive bending of metal cable gland
|
THREAD
|
Cable scope
(mm)
|
Thread length
(mm)
|
Height
(mm)
|
Spanner diameter
(mm)
|
Thread external
diameter (mm)
|
Hole size
(mm)
|
|
PG13.5
|
6.7-12
|
9
|
88
|
22
|
20.4
|
20.4-20.7
|
|
PG13.5
|
5-9
|
9
|
88
|
22
|
20.4
|
20.4-20.7
|
