Digital intelligent panel meter is suitable for measuring and displayingelectrical
parameters of current, voltage,power,frequency in electric grid, automation systems
. Set the rate through the panel, visual display system of a side operating point
parameters. The meters with high accuracy, good stability, resistance to
vibration, etc., candirectly replace the original pointer meter
|

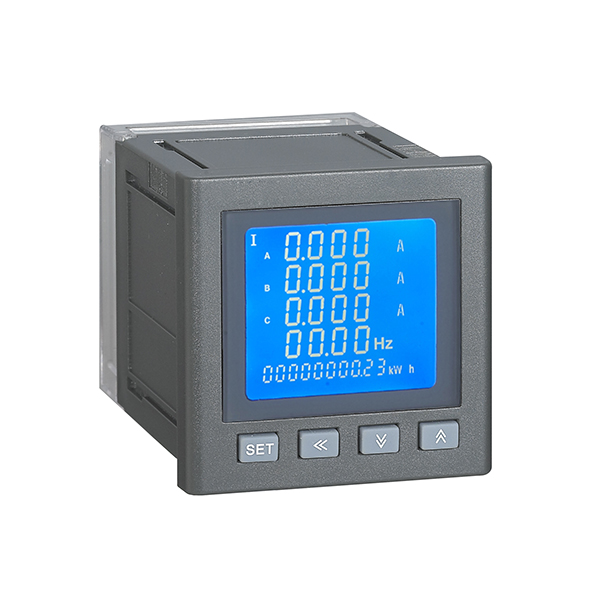

Product name and pictures
|
The basic parameters
|
Model
|
Overall dimensions - depth
|
Hole Size
|
|
Multi-function watt-hour meter
|
LED display input current and voltage is adjustable.
Measurement:three-phase(13、U3、Hz、cosΦ、Kw、Kvar、Kwh、Kvarh)
|
FK-2E-□
|
120×120-93
|
111×111
|
|
FK-9E-□
|
96×96-93
|
92×92
|
|
FK-3E-□
|
80×80-93
|
76×76
|
|
FK-AE-□
|
72×72-93
|
68×68
|
|
Multi-function watt-hour meter
|
LED display input current and voltage is adjustable.
Measurement:three-phase(13、U3、Hz、cosΦ、Kw、Kvar、Kwh、Kvarh)
|
FKY-2E-□
|
120×120-93
|
111×111
|
|
FKY-9E-□
|
96×96-93
|
92×92
|
|
FKY-3E-□
|
80×80-93
|
76×76
|
|
FKY-AE-□
|
72×72-93
|
68×68
|
Working power supply：AC220V or AC/DC220V Special customized：DC24V、AC380V、440V(ordering instruction)
“□”On behalf of the optional features are as follows:
D:Four way switch input, four-way medallion output
B1、B4：2,4 road Analog output(4-20mA/0-20mA ordering instruction)
There is no option function“□” omit，48×48 appearance product can only output all the way.
|
