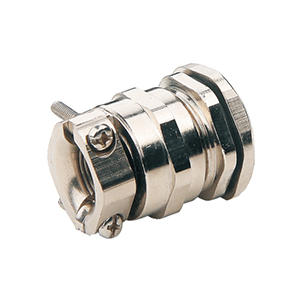

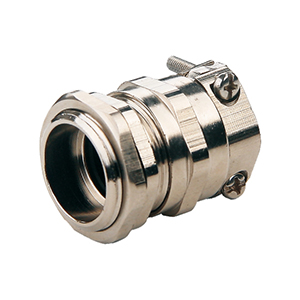

Material: Brass with nickel plated
Clamp jaw: Nylon PA(UL File NO:E240925).UL94-V2
Sealing element: NBR
Thread Type: Metric according to EN 60423
Test Standard: EN50262/EN62444
Protection class: IP68(the wire/cable is in clamping range.and assemble 0-Ring on the groove)
Range of temperature: -40℃to+100℃
Application: Suitable for all sealing,fixes,non-slip,the occasion of high temperaure requirements
Remark: if you need other marterial of sealing element,such as silicone,EPDM,etc.pls feel free to contact us!
|
THREAD
|
Cable scope
(mm)
|
Thread length
(mm)
|
Height
(mm)
|
Spanner diameter
(mm)
|
Thread external
diameter (mm)
|
Hole size
(mm)
|
|
M60x1.5
|
37-44
|
10
|
51
|
64
|
60
|
60-60.3
|
