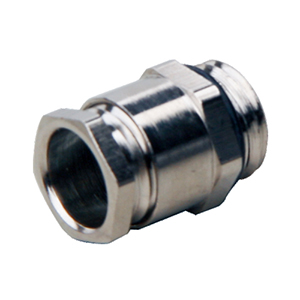

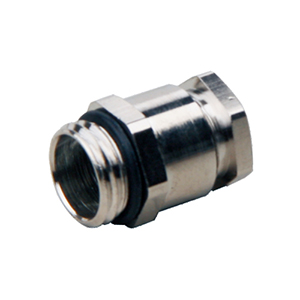

Material: Brass with nickel plated
Sealing element: NBR
Thread Type: PG according to DIN 40430
Thread Type: Metric according to EN 60423
Protection class: IP54
IP65(the wire/cable is in clamping range.and assemble 0-Ring on the groove)
Range of temperature: -40℃to+100℃
Application: For less demanding cable protection,suitable for indoor electrical control equipment
Remark: if you need other marterial of sealing element,such as silicone,EPDM,etc.pls feel free to contact us!
|
THREAD
|
Cable scope
(mm)
|
Thread length
(mm)
|
Height
(mm)
|
Spanner diameter
(mm)
|
Thread external
diameter (mm)
|
Hole size
(mm)
|
|
M12X1.5
|
6-8
|
6
|
15
|
13/14
|
12
|
12-12.3
|
