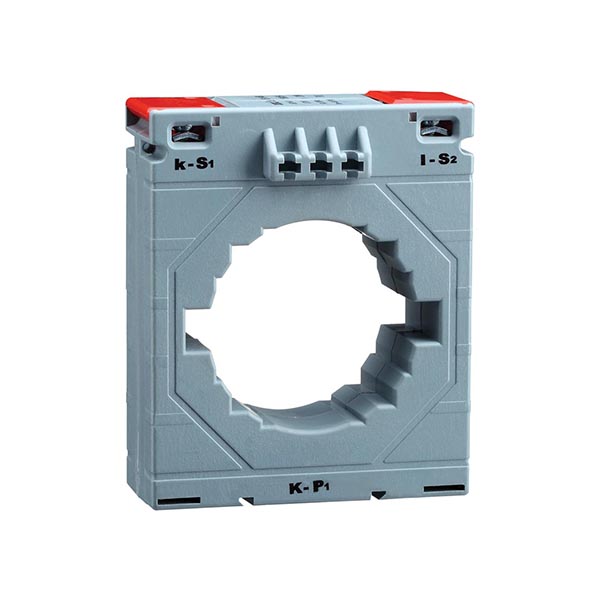

The series of current transformers can be applied to test, control, display and record the running of the electrical
equipment, and to protect the equipment against the damage, in the AC circuit with the rated voltage value below 660V
and the frequency of 50/60Hz. The product can be also applied to form a complete set of mine t
ransformer. It conforms to IEC 60185.
|
Current
ratio (A)
|
Rated load(VA)
|
Through the
number of turns
|
|
3
|
1
|
0.5
|
0.2
|
|
800/5
|
|
|
15
|
5
|
1
|
|
1000/5
|
|
|
15
|
5
|
1
|
|
1200/5
|
|
|
30
|
5
|
1
|
|
1500/5
|
|
|
30
|
10
|
1
|
|
1600/5
|
|
|
30
|
10
|
1
|
|
May-00
|
|
|
30
|
10
|
1
|
