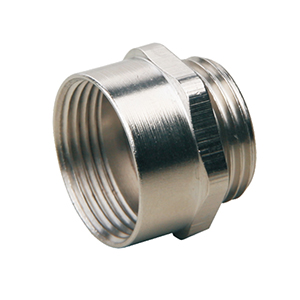

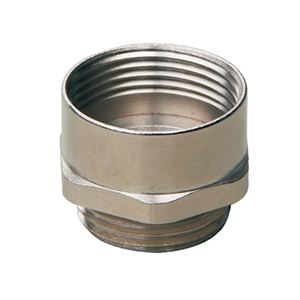

Material: Brass with nickel plated
Sealing element: NBR
Thread Type: PG according to DIN 40430
Thread Type: Metric according to EN 60423
Protection class: IP54
IP68(Assemble O-ring in the tightening part )
Range of temperature: -40℃to+100℃
Application: It functions for a small thread sizes convertsd to larger thread
Remark: if you need other marterial of sealing element,such as silicone,EPDM,etc.pls feel free to contact us!
|
THREAD
|
Thread length (mm)
|
Height (mm)
|
Spanner diameter (mm)
|
Thread external diameter (mm)
|
Hole size (mm)
|
|
PG7/PG9
|
5
|
10.5
|
18
|
12.5
|
12.5-12.8
|
|
PG9/PG11
|
6
|
12.5
|
21
|
15.2
|
15.2- 15.5
|
|
PG9/PG13.5
|
6
|
12.5
|
23
|
15.2
|
15.2-15.5
|
|
PG11/PG13.5
|
6
|
12.5
|
23
|
18.6
|
18.6-18.9
|
|
PG11/PG16
|
6
|
12.5
|
25
|
18.6
|
18.6-18.9
|
|
PG11/PG21
|
6
|
14.5
|
32
|
18.6
|
18.6-18.9
|
|
PG13.5/PG16
|
6.5
|
12.5
|
25
|
20.4
|
20.4-20.7
|
|
PG13.5/PG21
|
6.5
|
14.5
|
32
|
20.4
|
20.4-20 .7
|
|
PG16/PG21
|
6.5
|
14.5
|
32
|
22.5
|
22.5-22.8
|
|
PG16/PG29
|
6.5
|
16.5
|
41
|
22 .5
|
22.5-22.8
|
|
PG21/PG29
|
7
|
16.5
|
41
|
28 .3
|
28.3-28 .6
|
|
PG29/PG36
|
8
|
19
|
51
|
37
|
37-37.3
|
|
PG36/PG42
|
9
|
20
|
60
|
47
|
47-47.3
|
|
PG42/PG48
|
10
|
21
|
65
|
54
|
54-54 .3
|
|
M12x1.5/M16x1.5
|
6
|
10.5
|
18
|
12
|
12-12.3
|
|
M16x1.5/M18x1.5
|
6
|
12.5
|
21
|
16
|
16-16.3
|
|
M16x1.5/M20x1 .5
|
6
|
12.5
|
23
|
16
|
16-16.3
|
|
M18x1.5/M20x1.5
|
6
|
12.5
|
23
|
18
|
18-18.3
|
|
M20x1 .5/M22x1.5
|
6.5
|
12.5
|
25
|
20
|
20-20.3
|
|
M20x1 .5/M25x1.5
|
6.5
|
14.5
|
29
|
20
|
20-20.3
|
|
M22x1 .5/M25x1.5
|
6.5
|
14.5
|
29
|
22
|
22-22 .3
|
|
M25x1 .5/M32x1.5
|
7
|
16.5
|
36
|
25
|
25-25 .3
|
|
M32x1 .5/M40x1.5
|
8
|
19
|
45
|
32
|
32-32.3
|
|
M40x1 .5/M50x1.5
|
9
|
20
|
55
|
40
|
40-40.3
|
|
M50x1.5/M63x1.5
|
10
|
21
|
58
|
50
|
50-50.3
|
|
NPT3/8-NPT1/2
|
15
|
17
|
24
|
17.055
|
17.1-17.4
|
|
NPT1/2-NPT3/4
|
13
|
17
|
30
|
21.224
|
21.3-21.6
|
|
NPT3/4-NPT1
|
13
|
21
|
40
|
26.569
|
26.6-26.9
|
|
NPT3/4-NPT1 1/4
|
13
|
23
|
46
|
26.569
|
26.6-26.9
|
|
NPT1-NPT1 1/4
|
16
|
23
|
46
|
33.228
|
33.3-33.6
|
|
NPT1-NPT1 1/2
|
16
|
24
|
55
|
33.228
|
33.3-33.6
|
|
NPT11/4-NPT1 1/2
|
18
|
24
|
55
|
41.985
|
42-42.3
|
|
NPT1 1/2-NPT2
|
18
|
25
|
65
|
48.054
|
48.1-48.4
|
|
G1/4-G3/8
|
7
|
11.5
|
20
|
13.157
|
13.2-13.5
|
|
G3/4-G1/2
|
7
|
12.5
|
24
|
16.662
|
16.7-17
|
|
G1/2-G3/4
|
7
|
13
|
30
|
20.995
|
21-21.3
|
|
G3/4-G1
|
7
|
13
|
40
|
26.441
|
26.5-26.8
|
|
G3/4-G1 1/4
|
7
|
14
|
46
|
26.441
|
26.5-26.8
|
|
G1-G1 1/4
|
8
|
14
|
46
|
33.249
|
33.3-33.6
|
|
G1-G1 1/2
|
8
|
15
|
55
|
33.249
|
33.3-33.6
|
|
G11/4-G1 1/2
|
9
|
15
|
55
|
41.91
|
42-42.3
|
|
G1 1/2-G2
|
10
|
15
|
65
|
47.803
|
47.8-48. 1
|
