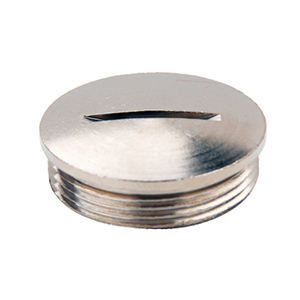

Metal Round Screw Plugs-Wenzhou Fuka Imp. & Exp. Co.,Ltd Wenzhou Fuka Electronic Co.,Ltd

Material: Brass with nickel plated
Sealing element: NBR
Thread Type: PG according to DIN 40430
Protection class: IP54
IP68(Assemble O-ring in the tightening part )
Range of temperature: -40℃to+100℃
Application: Use slot type screwdriver tightening fixed,to seal the reserved hole
Remark: if you need other marterial of sealing element,such as silicone,EPDM,etc.pls feel free to contact us!

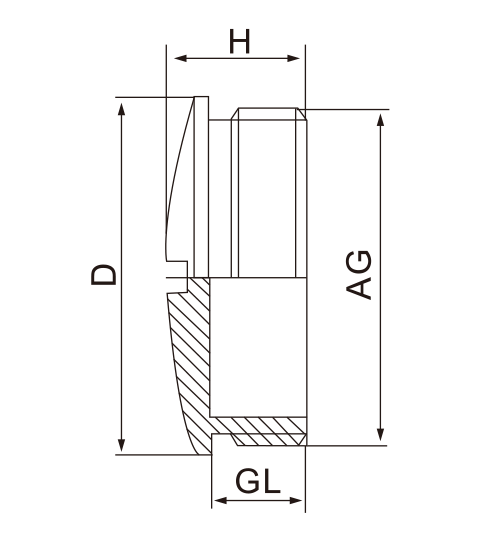

THREAD	Thread length (mm)	Height (mm)	Plan diameter (mm)	Thread external diameter (mm)	Hole size (mm)
PG7	5	8	14	12.5	12.5-12.8
PG9	6	9	17	15.2	15.2-15.5
PG11	6	9	20	18.6	18.6-18.9
PG13.5	6.5	9.5	22	20.4	20.4-20.7
PG16	6.5	9.5	24	22.5	22.5-22.8
PG21	7	11	30	28.3	28.3-28.6
PG29	8	12	39	37	37-39.3
PG36	9	15	50	47	47-47.3
PG42	10	16	57	544	54-54.3
PG48	10	16	64	59.3	59.3-59.6
M12X1.5	5	8	14	12	12-12.3
M14X1.5	6	9	16	14	14-14.3
M16X1.5	6	9	18	16	16-16.3
M18X1.5	6	9	20	18	18-18.3
M20x1.5	6.5	9.5	22	20	20-20.3
M22X1.5	6.5	9.5	24	22	22-22.3
M24X1.5	6.5	11	26	24	24-24.3
M25X1.5	7	11	28	25	25-25.3
M27X1.5	7	11	30	27	27-27.3
M30X1.5	7	11	33	30	30-30.3
M32X1.5	8	12	35	32	32-32.3
M33X1.5	8	12	36	33	33-33.3
M36X1.5	8	12	40	36	36-36.3
M40X1.5	9	13	44	40	40-40.3
M42X1.5	9	13	46	42	42-42.3
M44X1.5	9	13	48	44	44-44.3
M48X1.5	9	14	52	48	48-48.3
M50X1.5	9	15	54	50	50-50.3
M56X1.5	9	15	60	56	56-56.3
M63X1.5	10	16	67	63	63-63.3
M64X1.5	10	16	68	64	64-64.3
M72X2	12	19	77	72	72-72.3
M75X2	12	19	80	75	75-75.3
M76X2	12	19	81	76	76-76.3
M80X2	14	22	88	80	80-80.3
M90X2	15	23	100	90	90-90.3
M100X2	16	24	110	100	100-100.3
M110X2	18	26.5	120	110	110-110.3
NPT1/4	8	11	16	13.616	13.7-14
NPT3/8	8	11	20	17.055	17-17.3
NPT1/2	10	13	24	21.224	21 .2-21.5
NPT3/4	11	15	30	26.569	26.5-26.8
NPT1	14	18	36	33 .228	33.3-33.6
NPT1 1/4	14	18	45	41.985	42-42.3
NPT1 1/2	15	20	52	48.054	48-48.3
NPT2	15	21	65	60.092	60-60.3
NPT2 1/2	20	27	79	72.699	72.7-73
NPT3	20	28	96	88.608	88.6-88.9
G1/4	7	10	16	13.167	13.2-13.5
G3/8	8	11	20	16.662	16.7-17
G1/2	8	11	24	20 .995	21-21.3
G3/4	8	12	30	26.44 1	26.5-26.8
G1	8	12	36	33.249	33.3-33.6
G1 1/4	8	12	45	41.91	42-42 .3
G1 1/2	10	13	52	47.803	47.8 -48. 1
G2	12	18	65	59.614	59.7-60
G2 1/2	15	22	80	75.184	75.2-76
G3	18	26	95	87 .884	87.9-88.5
G3 1/2	20	28	110	100.33	100.5-101
G4	20	28.5	130	113.03	113-114
