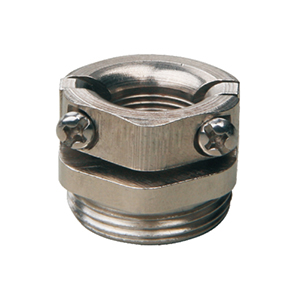

Material: Brass with nickel plated
Sealing element: NBR
Thread Type: PG according to DIN 40430
Protection class: IP54
IP68(Assemble O-ring in the tightening part )
Range of temperature: -40℃to+100℃
Application:It functions for a large thread size converted to smaller thread
Remark:if you need other marterial of sealing element,such as silicone,EPDM,etc.pls feel free to contact us!
|
THREAD
|
Cable scope (mm)
|
Thread length (mm)
|
Height (mm)
|
Spanner diameter (mm)
|
Thread external diameter (mm)
|
Hole size (mm)
|
|
PG7
|
5-8
|
6
|
15
|
16
|
12.5
|
12.5-12.8
|
|
PG9
|
6.5-10
|
6
|
16
|
19
|
15.2
|
15.2-15.5
|
|
PG11
|
7.5-12
|
6
|
17
|
22
|
18.6
|
18.6-18.9
|
|
PG13.5
|
8.5-14
|
6.5
|
18
|
24
|
20.4
|
20.4-20.7
|
|
PG16
|
9.5-16
|
6.5
|
18
|
26
|
22.5
|
22.5-22.8
|
|
PG21
|
12-21.5
|
8
|
21
|
33
|
28.3
|
28.3-28.6
|
|
PG29
|
19-30
|
8
|
22
|
41
|
37
|
37-37.3
|
|
PG36
|
25-37
|
9.5
|
25.5
|
52
|
47
|
47-47.3
|
|
PG42
|
31-43
|
10
|
26
|
59
|
54
|
54-54.3
|
|
PG48
|
35-48
|
11
|
27
|
64
|
59.3
|
59.3-59.6
|
|
M12X1.5
|
5-8
|
6
|
15
|
16
|
12
|
12-12.3
|
|
M16X1.5
|
6.5-10
|
6
|
16
|
19
|
16
|
16-16.3
|
|
M20X1.5
|
8.5-14
|
6.5
|
18
|
24
|
20
|
20-20.3
|
|
M25X1.5
|
12-21.5
|
8
|
21
|
33
|
25
|
25-25.3
|
|
M32X1.5
|
16-27
|
8
|
22
|
41
|
32
|
32-32.3
|
|
M40x1.5
|
22-33
|
9.5
|
25.5
|
52
|
40
|
40-40.3
|
|
M50X1.5
|
25-38.5
|
9.5
|
25.5
|
52
|
50
|
50-50.3
|
