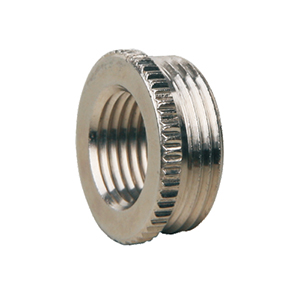

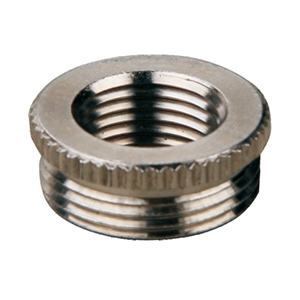

Metal Round Reducer Thead Adptors
Material: Brass with nickel plated
Sealing element: NBR
Thread Type: PG according to DIN 40430
Protection class: IP54
IP68(Assemble O-ring in the tightening part )
Range of temperature: -40℃to+100℃
Application: It functions for a large thread size converted to smaller thread
Remark: if you need other marterial of sealing element,such as silicone,EPDM,etc.pls feel free to contact us!
|
THREAD
|
Thread length (mm)
|
Height (mm)
|
The
internal
thread
lenght
(mm)
|
Thread external diameter (mm)
|
Hole size (mm)
|
|
PG9/PG7
|
6
|
8.5
|
17
|
15.2
|
15.2-15.5
|
|
PG11/PG7
|
6
|
8.5
|
20
|
18.6
|
18.6-18.9
|
|
PG11/PG9
|
6
|
8.5
|
20
|
18.6
|
18.6-18.9
|
|
PG13 .5/PG9
|
6.5
|
9
|
22
|
20.4
|
20.4-20 .7
|
|
PG13.5/PG11
|
6.5
|
9
|
22
|
20.4
|
20.4-20.7
|
|
PG16/PG9
|
6.5
|
9.5
|
24
|
22.5
|
22.5-22 .8
|
|
PG16/PG11
|
6.5
|
9.5
|
24
|
22.5
|
22.5-22 .8
|
|
PG16/PG13.5
|
6.5
|
9.5
|
24
|
22.5
|
22.5-22 .8
|
|
PG21/PG11
|
7
|
10
|
30
|
28.3
|
28.3-28.6
|
|
PG21/PG13.5
|
7
|
10
|
30
|
28.3
|
28.3-28.6
|
|
PG21/PG16
|
7
|
10
|
30
|
28.3
|
28.3-28.6
|
|
PG29/ PG16
|
8
|
11.5
|
39
|
37
|
37-37.3
|
|
PG29/PG21
|
8
|
11.5
|
39
|
37
|
37-37.3
|
|
PG36/PG21
|
9
|
12.5
|
50
|
47
|
47-47.3
|
|
PG36/PG29
|
9
|
12.5
|
50
|
47
|
47-47.3
|
|
PG42/PG29
|
10
|
14
|
57
|
54
|
54-54.3
|
|
PG42/PG36
|
10
|
14
|
57
|
54
|
54-54.3
|
|
PG48/PG36
|
10
|
14
|
64
|
59.3
|
59.3-59.6
|
|
PG48/PG42
|
10
|
14
|
64
|
59.3
|
59.3-59.6
|
|
M16x1.5/M12X5
|
6
|
8.8
|
17
|
16
|
16-16.3
|
|
M20x1.5/M12X5
|
6.5
|
9.5
|
22
|
20
|
20-20.3
|
|
M20X15/M16X5
|
6.5
|
9.5
|
22
|
20
|
20-20.3
|
|
M25x1.5/M16x1.5
|
7
|
10
|
27
|
25
|
25-25.3
|
|
M25x1.5/M20×1.5
|
7
|
10
|
27
|
25
|
25-25.3
|
|
M32x1.5/M16x1.5
|
8
|
11
|
34
|
32
|
32-32.3
|
|
M32x 1.5/M20x 1.5
|
8
|
11
|
34
|
32
|
32-32.3
|
|
M32x 1.5/M25X1.5
|
8
|
11
|
34
|
32
|
32-32.3
|
|
M40x 1.5/M20x 1.5
|
8
|
12
|
44
|
40
|
40-40.3
|
|
M40x1.5/M25X1.5
|
8
|
12
|
44
|
40
|
40-40.3
|
|
M40X1.5/M32X1.5
|
8
|
12
|
44
|
40
|
40-40.3
|
|
M50x 1.5/M25×1.5
|
9
|
13
|
55
|
50
|
50-50.3
|
|
M50x 1.5/M32x 1.5
|
9
|
13
|
55
|
50
|
50-50.3
|
|
M50x 1.5/M40x 1.5
|
9
|
13
|
55
|
50
|
50-50.3
|
|
M63x 1.5/M32×1.5
|
10
|
14
|
65
|
63
|
63-63.6
|
|
M63x1.5/M40x1.5
|
10
|
14
|
65
|
63
|
63-63.6
|
|
M63x 1.5/M50x 1.5
|
10
|
14
|
65
|
63
|
63-63.3
|
