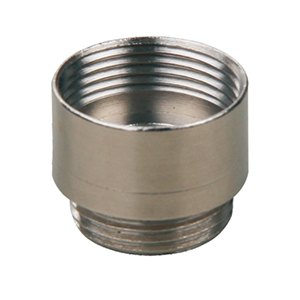

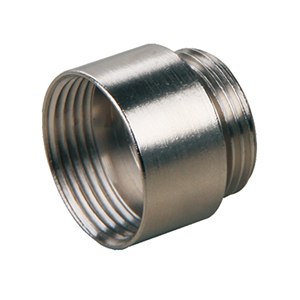

Material: Brass with nickel plated
Sealing element: NBR
Thread Type: PG according to DIN 40430
Thread Type: Metric according to EN 60423
Protection class: IP54
IP68(Assemble O-ring in the tightening part )
Range of temperature: -40℃to+100℃
Application: It functions for a small thread sizes convertsd to larger thread
Remark: if you need other marterial of sealing element,such as silicone,EPDM,etc.pls feel free to contact us!
|
THREAD
|
Thread length (mm)
|
Height (mm)
|
Plan
diameter
(mm)
|
Thread external diameter (mm)
|
Hole size (mm)
|
|
PG7/PG9
|
5
|
10.5
|
17
|
12.5
|
12.5-12.8
|
|
PG9/PG11
|
6
|
12.5
|
20
|
15.2
|
15.2-15.5
|
|
PG9/PG13.5
|
6
|
12.5
|
22
|
15.2
|
15.2-15.5
|
|
PG11/PG13.5
|
6
|
12.5
|
22
|
18.6
|
18.6-18.9
|
|
PG11/PG16
|
6
|
12.5
|
24
|
18.6
|
18.6-18.9
|
|
PG11/PG21
|
6
|
14.5
|
30
|
18.6
|
18.6-18.9
|
|
PG13.5/PG16
|
6.5
|
12.5
|
24
|
20.4
|
20.4-20.7
|
|
PG13.5/PG21
|
6.5
|
14.5
|
30
|
20.4
|
20.4-20 .7
|
|
PG16/PG21
|
6.5
|
14.5
|
30
|
22.5
|
22.5-22.8
|
|
PG16/PG29
|
6.5
|
16.5
|
39
|
22.5
|
22.5-22.8
|
|
PG21/PG29
|
7
|
16.5
|
39
|
28.3
|
28.3-28.6
|
|
PG29/PG36
|
8
|
19
|
50
|
37
|
37-37.3
|
|
PG36/PG42
|
9
|
20
|
57
|
47
|
47-47 .3
|
|
PG42/PG48
|
10
|
21
|
64
|
54
|
54-54.3
|
|
M12x1.5/M16x1.5
|
6
|
10.5
|
18
|
12
|
12-12.3
|
|
M16x1.5/M18x1.5
|
6
|
12.5
|
20
|
16
|
16-16.3
|
|
M16x1.5/M20x1 .5
|
6
|
12.5
|
22
|
16
|
16-16.3
|
|
M18x1.5/M20x1 .5
|
6
|
12.5
|
22
|
18
|
18-18.3
|
|
M20x1.5/M22x1 .5
|
6.5
|
12.5
|
24
|
20
|
20-20.3
|
|
M20x1.5/M25x1 .5
|
6.5
|
14.5
|
27
|
20
|
20-20.3
|
|
M22x1.5/M25x1 .5
|
6.5
|
14.5
|
27
|
22
|
22-22.3
|
|
M25x1.5/M32x1 .5
|
7
|
16.5
|
34
|
25
|
25-25.3
|
|
M32x1.5/M40x1 .5
|
8
|
19
|
42
|
32
|
32-32.3
|
|
M40x1.5/M50x1 .5
|
9
|
20
|
53
|
40
|
40-40.3
|
|
M50x1.5/M63x1 .5
|
10
|
21
|
66
|
50
|
50-50.3
|
