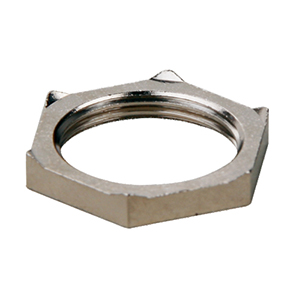

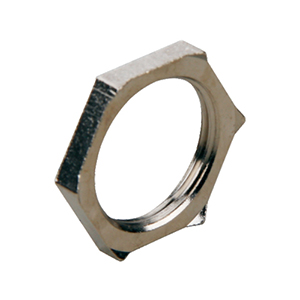

EMC Metal Lock Nut-Wenzhou Fuka Imp. & Exp. Co.,Ltd Wenzhou Fuka Electronic Co.,Ltd

Material:Brass with nickel plated

Test Standard:2014/30/EU

Thread Type: Metric according to EN 60423

Thread Type: G according to ISO 228-1/JIS B 0202

Application:Hexagonal edges sharpend,cabinet for surface paint,to ensure reliable grounding shield with metal canle gland and other accessories used in conjunction with standard thread

THREAD	The thickness of the nut (mm)	Spanner diameter (mm)	THREAD	The thickness of the nut (mm)	Spanner diameter (mm)
PG7	2.8	15	M16X1.5	2.8	18
PG9	2.8	18	M16X1.5	2.8	19
PG11	3.0	21	M18X1.5	3.0	20
PG13.5	3.0	23	M20X1.5	3.0	22
PG16	3.0	26	M20X1.5	3.0	23
PG21	3.5	32	M20X1.5	3.0	24
PG29	4.0	41	M22X1.5	3.0	24
PG36	5.0	51	M24X1.5	3.0	27
PG42	5.0	60	M25X1.5	3.5	27
PG48	5.5	64	M25X1.5	3.5	29
NPT1/4	3	17	M27X1.5	3.5	30
NPT3/8	3.5	20	M28X1.5	3.5	32
NPT1/2	3.5	24	M30X1.5	4.0	34
NPT3/4	4.0	30	M32X1.5	4.0	36
NPT1	4.5	40	M33X1.5	4.0	36
NPT1 1/4	5.0	46	M36X1.5	4.5	40
NPT1 1/2	5.0	55	M37X1.5	4.5	41
NPT2	5.5	68	M40X1.5	4.5	46
G1/4	3.0	17	M42X1.5	4.5	46
G3/8	3.0	20	M47X1.5	4.5	51
G1/2	3.0	24	M48X1.5	4.5	51
G3/4	4.0	30	M50X1.5	5.0	55
G1	4.5	40	M54X1.5	5.0	57
G1 1/4	5	46	M56X1.5	5.0	60
G1 1/2	5	55	M60X1.5	5.5	64
G2	5.5	68	M63X1.5	5.5	68
M12X1.5	2.8	14	M63X1.5	5.5	70
M12X1.5	2.8	15	M64X1.5	5.5	68
M14X1.5	2.8	17	M64X1.5	5.5	70
