Digital intelligent panel meter is suitable for measuring and displayingelectrical
parameters of current, voltage,power,frequency in electric grid, automation systems
. Set the rate through the panel, visual display system of a side operating point
parameters. The meters with high accuracy, good stability, resistance to
vibration, etc., candirectly replace the original pointer meter
|
Spread Angle
|
Model
|
Overall
dimensions - depth
|
The size
of hole
|
The amount
limit specifications
|
Access
instructions
|
G(Wide Angle)
240°～270°
|

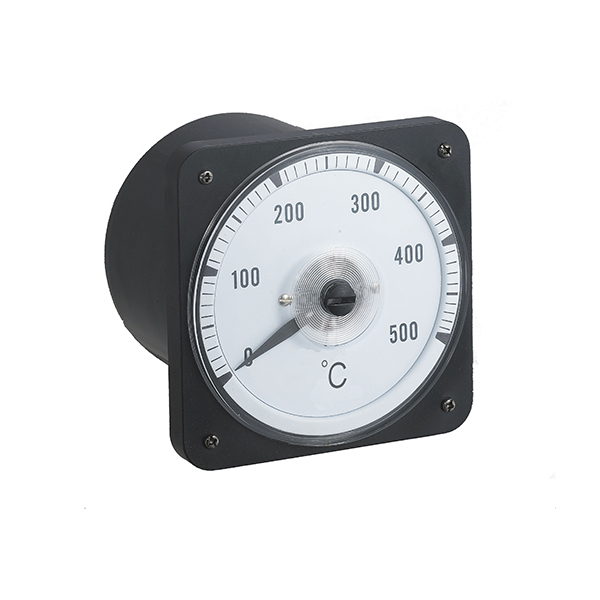

FKG96-°C
|
96X96-108
|
92X92
|
0-100°C
0-250°C
0-500°C
0-800°C
0-1000°C
|
DT100 access
or K type thermocouple
access
|
|
FKG72-°C
|
72X72-108
|
68X68
|
Z（Right Angle）
90°C
|

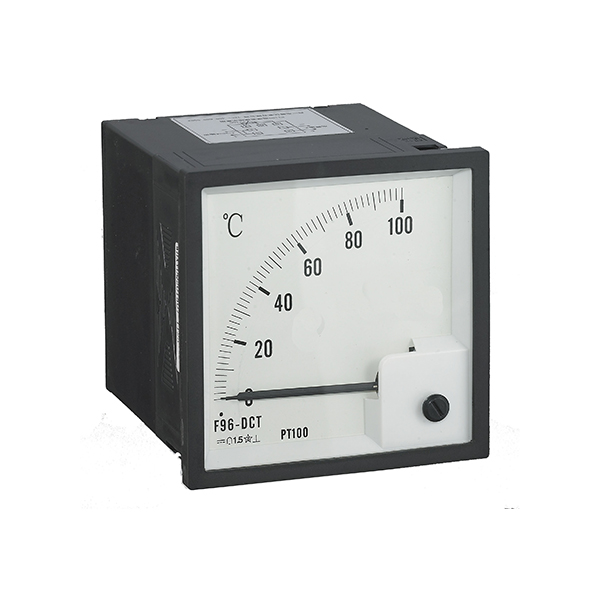

FKZ96-°C
|
96X96-65
|
92X92
|
|
FKZ72-°C
|
72X72-65
|
68X68
|
G(Wide Angle)
240°～270°
|
FKG110-°C
|
110X110-95
|
110×110-95
Fixed hole
spacing for 90
|
|
FKG80-°C
|
80X80-105
|
Φ71
Fixed hole
spacing for Φ5
|
0-5000Mpa
|
4-20mA input
|
|
Directions for use
1.Directly measured with thermocouple thermometer, pressure gauge input signal
for 4-20 ma, can also according to user requirements to customize the input signal.
2.Can take 4-20 ma analog output, the maximum load capacity of 600Ω output signal.
3.Can take alarm switch output, the output load capacity of 3A，250VAC.

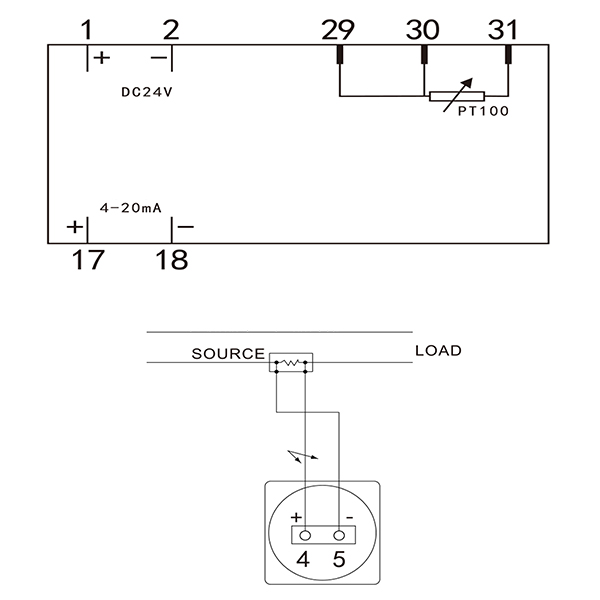

4.Temperature sensor connection to indicator, three wire system.
|
