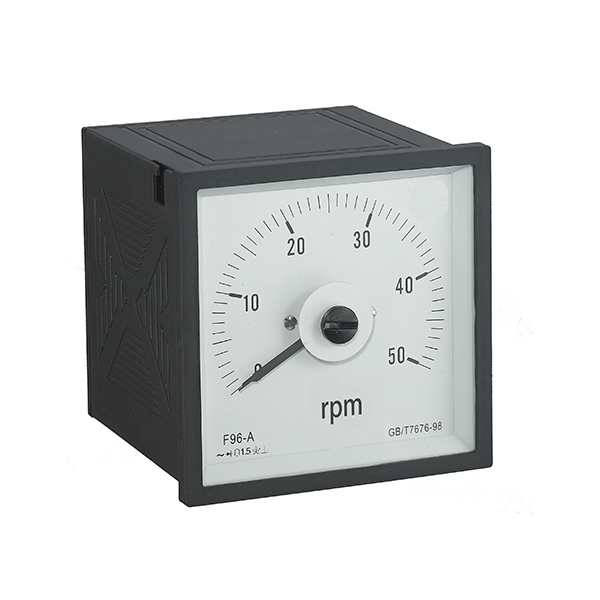

Digital intelligent panel meter is suitable for measuring and displayingelectrical
parameters of current, voltage,power,frequency in electric grid, automation systems
. Set the rate through the panel, visual display system of a side operating point
parameters. The meters with high accuracy, good stability, resistance to
vibration, etc., candirectly replace the original pointer meter
|
Spread Angle
|
Model
|
Overall dimensions - depth
|
The size of hole
|
The amount limit specifications
|
Access instructions
|
G(Wide Angle)
240°～270°
|
FKG96-□
|
96X96-108
|
92X92
|
“□”On behalf
of the following
parameters
°C
Mpa
rpm
r/min
kg/c㎡
m³/S
Pa
bar
According to
user needs to
custom specifications
|
Direct access
DC10V or 4-20
ma input other
signals can
also be based
on demand
|
|
FKG72-□
|
72X72-108
|
68X68
|
Z（Right Angle）
90°C
|
FKZ96-□
|
96X96-65
|
92X92
|
|
FKZ72-□
|
72X72-658
|
68X68
|

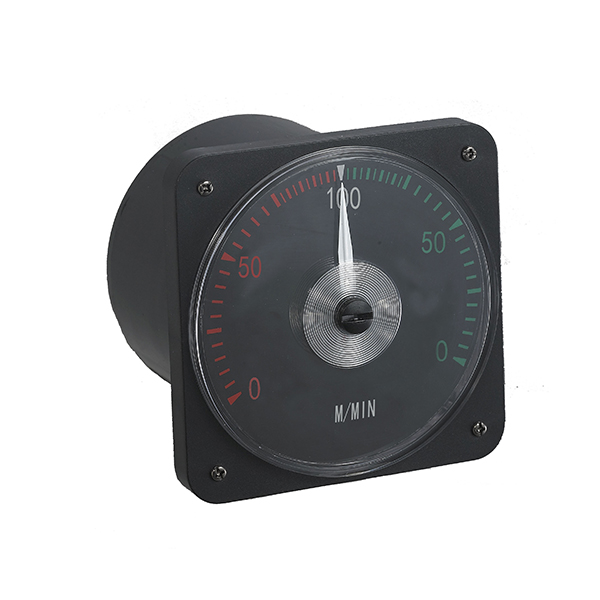

G(Wide Angle)
240°～270°
|
FKG110-□
|
110×110-95
Fixed hole spacing for 90
|
Φ101
Fixed hole spacing for Φ6
|
|
FKG80-□
|
80×80-105
Fixed hole spacing for 64
|
Φ71
Fixed hole spacing for Φ5
|

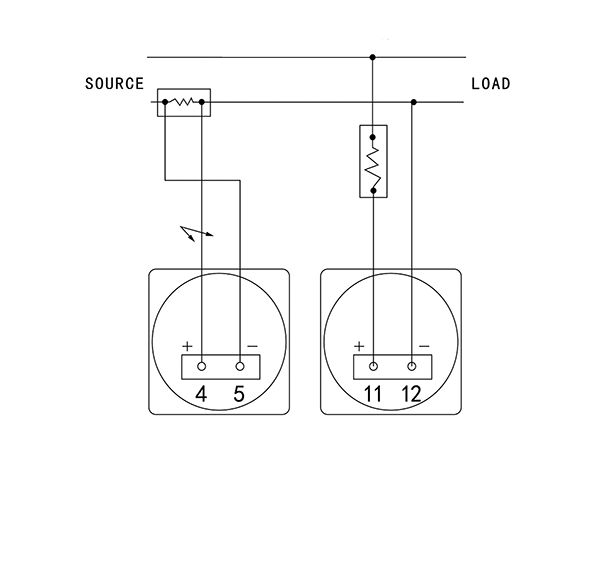

Directions for use：
1.Used for dc 10 v or 4-20 ma input, can also be customized according to user input signal.
2.The back of the instrument can according to user requirements can be set up to adjust knob, instrument factory have been set according to the order, but the user on-site adjustment requirements, if any, can be adjusted on its own.
3.Calibration panels indicate the adjustable temperature, pressure, or other limiting the meter.
4.Instrument can be made with the function of night vision, lighting power, for DC24V commonly, also can customize according to the user.
|
