Digital intelligent panel meter is suitable for measuring and displayingelectrical
parameters of current, voltage,power,frequency in electric grid, automation systems
. Set the rate through the panel, visual display system of a side operating point
parameters. The meters with high accuracy, good stability, resistance to
vibration, etc., candirectly replace the original pointer meter
|
Spread Angle
|
Model
|
Overall dimensions - depth
|
The size of hole
|
The amount
limit specifications
|

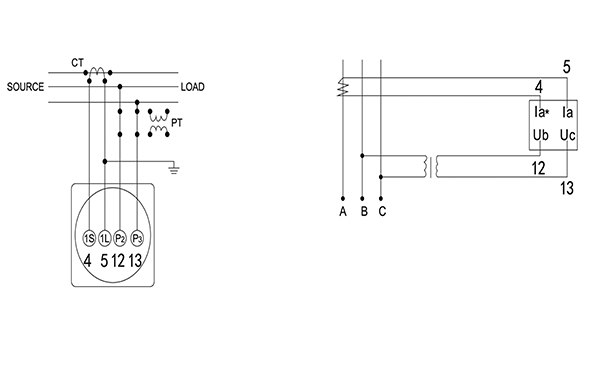

Access
instructions
|
G(Wide Angle)
240°～270°
|

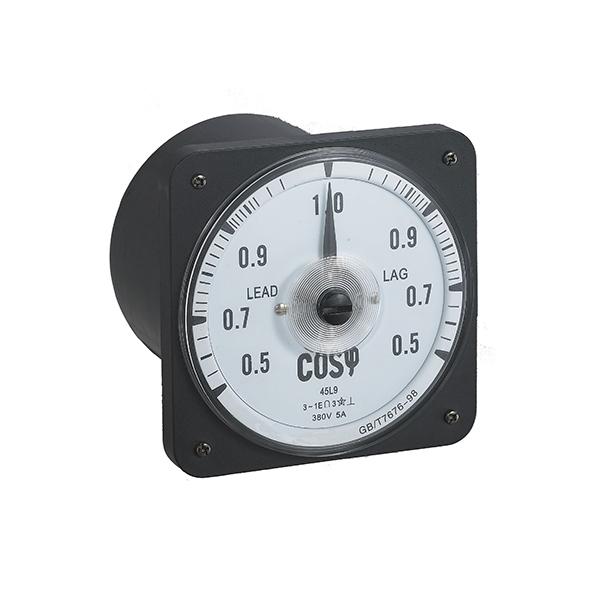

FKG96-cosΦ
|
96X96-108
|
92X92
|
0.5C-1-0.5L
0C-1-0L
|
100v/5A
220V/5A
380V/5A
400V/5A
440V-5A
|
|
FKG72-cosΦ
|
72X72-108
|
68X68
|
Z（Right Angle）
90°C
|
FKZ96-cosΦ
|
96X96-65
|
92X92
|
|
FKZ72-cosΦ
|
72X72-658
|
68X68
|
G(Wide Angle)
240°～270°
|
FKG110-cosΦ
|
110×110-95
Fixed hole spacing for 90
|
Φ101
Fixed hole spacing for Φ6
|
|
FKG80-cosΦ
|
80×80-105
Fixed hole spacing for 64
|
Φ71
Fixed hole spacing for Φ5
|
Directions for use：
1.For the grid power factor measurement.
2.According to user needs to cross the red line on the set value, or support with red set data pointer instrument.
|
