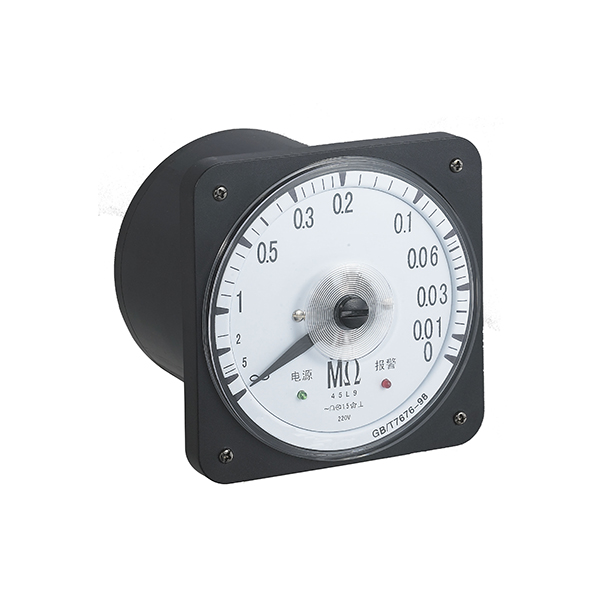

FKG110-BMΩ-110-Wenzhou Fuka Imp. & Exp. Co.,Ltd Wenzhou Fuka Electronic Co.,Ltd

Digital intelligent panel meter is suitable for measuring and displayingelectrical
parameters of current, voltage,power,frequency in electric grid, automation systems
. Set the rate through the panel, visual display system of a side operating point
parameters. The meters with high accuracy, good stability, resistance to
vibration, etc., candirectly replace the original pointer meter

Spread Angle	Model	Overall dimensions - depth	The size of hole	The amount limit specifications	Access instructions


G(Wide Angle) 240°～270°	FKG96-BMΩ	96X96-108	92X92	100V	Direct access to or by the voltage transformer PT access
	FKG96-MΩ
	FKG72-BMΩ	72X72-108	68X68
	FKG72-MΩ
Z（Right Angle） 90°C	FKZ96-BMΩ	96X96-65	92X92	220V
	FKZ96-MΩ
	FKZ72-BMΩ	72X72-65	68X68
	FKZ72-MΩ
Z（Right Angle） 90°C	FKZ96-2BMΩ	96X96-65	92X92	380V



G(Wide Angle) 240°～270°	FKG110-BMΩ	110×110-95 Fixed hole spacing for 90	Φ101 Fixed hole spacing for Φ6	440V

	FKG110-MΩ

	FKG80-MΩ	Φ71 Fixed hole spacing for Φ5	Φ71 Fixed hole spacing for Φ5

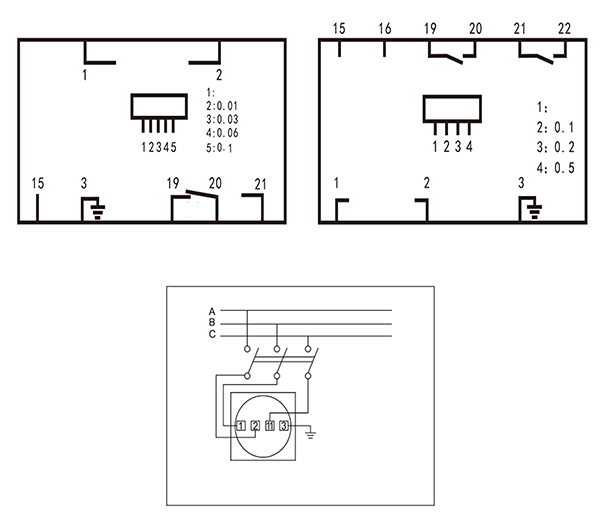

Directions for use Ac power grid insulation monitor is used to detect adverse grounding grid for ship communication alarm equipment. 1.This equipment is used for continuous monitoring the ground under 500 v ac power distribution system of the electric circuits of the ship in the insulation resistance between the anomalies and insulation resistance in the power grid, the alarm value of insulation resistance is lower than the instrument set a sound and light alarm signals. 2.The effective measurement range of the instrument for 0.005-5MΩ, alarm value of 0.01MΩ,0.03MΩ,0.06MΩ,0.1MΩ a total of 4 file. 3.Outside the alarm signal output capacity of DC24V/3A or AC220V(max）1A.4，5 for a start, 5，6 for the normally closed end. 4.Correct connection, connected to the power, the power indicator, testing instruments, indicating value of the pointer is the grid insulation resistance value. 5.According to set the alarm value, and setting range switch to the corresponding file value, when the grid insulation resistance is lower than the set value, the instrument will output alarm signal, and the color lamp lit at the same time.When back to normal, the insulation resistance instrument alarm status to canceled. 6.In the same network, can't use two monitors or other instruments and measuring insulation resistance of the same network. 7.To determine whether instruments work normal band switch can be transferred to the introspection gear, can conduct self-inspection, self-checking instrument internal simulation test to resistance, when after the self-checking instrument must be restored to normal working condition. 8.This instrument can be divided into single way grid insulation monitor or dual grid insulation monitor of power, lighting, single-channel grid insulation monitor can take 4-20 ma analog output signal, analog output accuracy of 1%. Attention:This measure 0 to 5Ω, rated voltage is AC220V or 380V.Other specifications can also be customized according to the requirements of customers, using the environment with 96 other tables.
