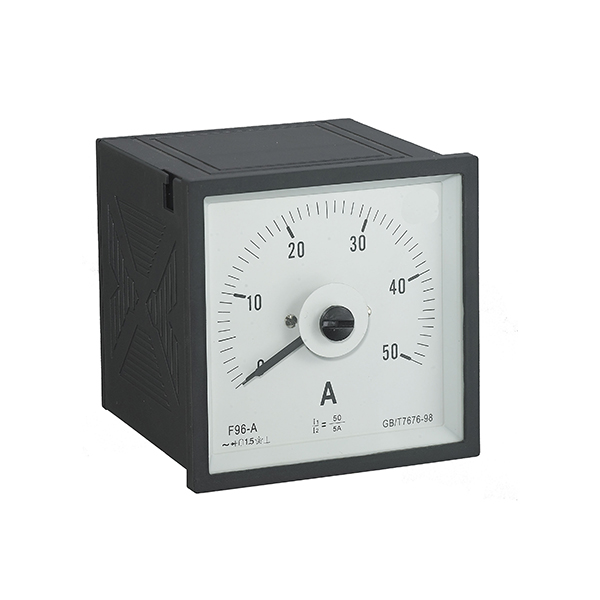

Digital intelligent panel meter is suitable for measuring and displayingelectrical
parameters of current, voltage,power,frequency in electric grid, automation systems
. Set the rate through the panel, visual display system of a side operating point
parameters. The meters with high accuracy, good stability, resistance to
vibration, etc., candirectly replace the original pointer meter
|
Spread Angel
|
Model
|
Overall dimensions - depth
|
The size of hole
|
The amount limit specifications
|
Access instructions
|
G(Wide Angle)
240°～270°
|
FKG96B-ACV-96
|
96X96-108
|
92X92
|
0-30A
|
Direct input
|
|
FKG96B-DCV-96
|
|
FKG96B-ACA-96
|
|
FKG96B-DCA-96
|
|
FKG72B-ACV-96
|
72X72-108
|
68X68
|
|
FKG72B-DCV-96
|
|
FKG72B-ACA-96
|
|
FKG72B-DCA-96
|
0-1000KA
|
The current transformer CT access（The secondary current is 5A、1A、0.5A）
|
Z（Right Angle）
90°C
|
FKZ96B-ACV-96
|
96X96-65
|
92X92
|
|
FKZ96B-DCV-96
|
|
FKZ96B-ACA-96
|
|
FKZ96B-DCA-96
|
|
FKZ72B-ACV-96
|
72X72-65
|
68X68
|
|
FKZ72B-DCV-96
|
0-1000V
|
Direct input
|
|
FKZ72B-ACA-96
|
|
FKZ72B-DCA-96
|
G(Wide Angle)
240°～270°
|
FKG110B-ACV-110
|
110×110-95
Fixed hole spacing for 90
|
Φ101
Fixed hole spacing for Φ6
|
|
FKG110B-DCV-110
|
|
FKG110B-ACA-110
|
|
FKG110B-DCA-110
|
0-1000KV
|
The current transformer CT access
|
|
FKG80B-ACV-80
|
80×80-105
Fixed hole spacing for 64
|
Φ71
Fixed hole spacing for Φ5
|
|
FKG80B-DCV-80
|
|
FKG80B-ACA-80
|
|
FKG80B-DCA-80
|
Attention:“B”Means with alarm function instrument

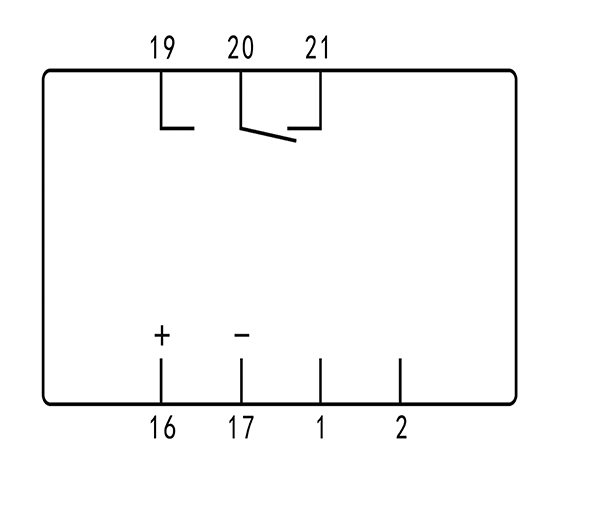

Directions for use：
1.For ac/dc current voltage measurement has set the alarm function.
2.All instrument with setting adjustment buttons, under normal circumstances, the instrument in the factory has been adjusted according to your requirement, the user can also adjust itself if necessary.
3.The user should be in ordering model, specification, and indicate in the contract and confirmation.
4.Calibration panel instructions for temperature, pressure, or other non-electricity(according to the requirements of customers).
5.Working power supply:24VCD±25%,100VAC,220VAC20±20%.
6.The power consumption:≤2VA.
7.The output capacity of getting an electric shock：AC250V,1A;DC28V,1A.
|
