Digital intelligent panel meter is suitable for measuring and displayingelectrical
parameters of current, voltage,power,frequency in electric grid, automation systems
. Set the rate through the panel, visual display system of a side operating point
parameters. The meters with high accuracy, good stability, resistance to
vibration, etc., candirectly replace the original pointer meter
|
Spread Angle
|
Model
|
Overall
dimensions - depth
|
The size
of hole
|
The amount limit specifications
|
Access
instructions
|
G(Wide Angle)
240°～270°
|

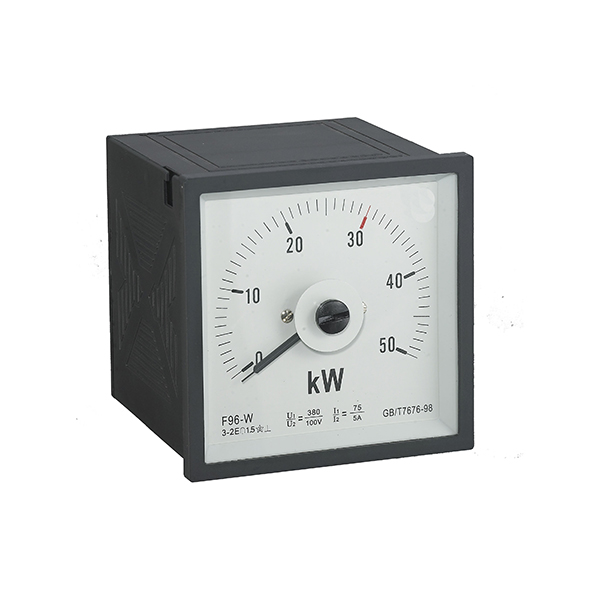

FKG96-W
|
96X96-108
|
92X92
|
800-2000W
|
Direct input
|
|
FKG96-Var
|
|
FKG72-W
|
72X72-108
|
68X68
|
0.8-3000KW
|

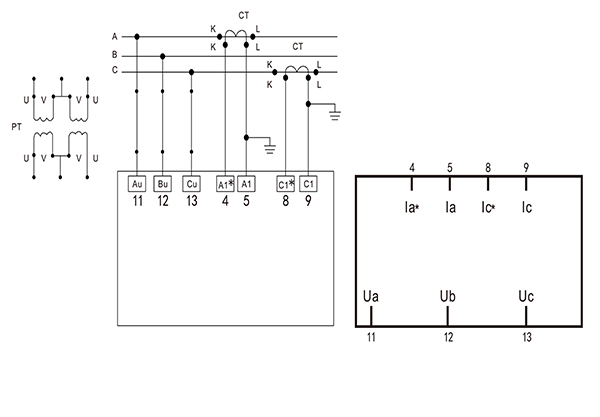

The current/voltage
transformer
CT/PT access(Secondary
current/voltage5A/100V)
|
|
FKG72-Var
|
Z（Right Angle）
90°C
|

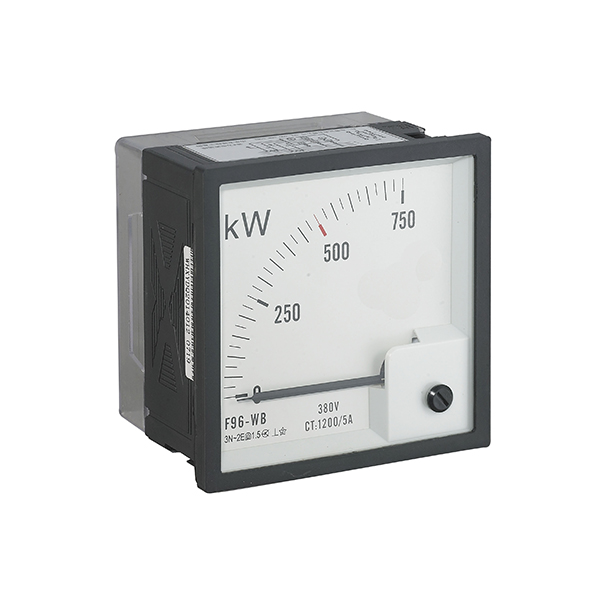

FKZ96-W
|
96X96-65
|
92X92
|
1-6000MW
|
|
FKZ96-Var
|
|
FKZ72-W
|
72X72-658
|
68X68
|
600-1500Var
|
Direct input
|
|
FKZ72-Var
|
G(Wide Angle)
240°～270°
|

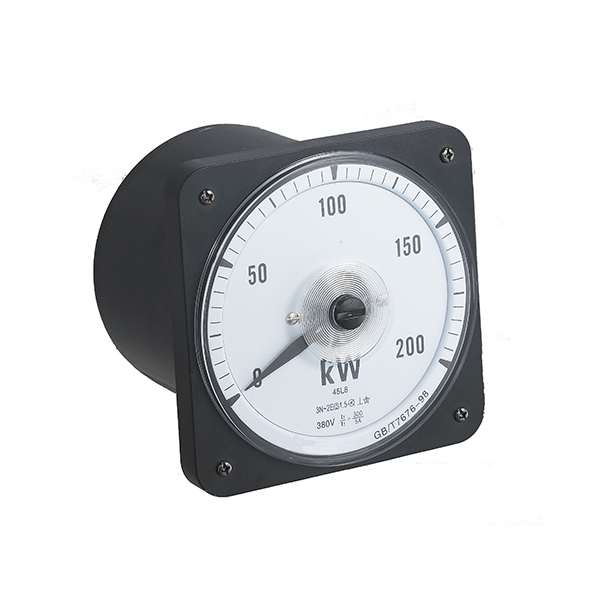

FKG110-W
|
110×110-95
Fixed hole
spacing for 90
|
Φ101
Fixed hole
spacing for Φ6
|
1-3000Kvar
|
The current/voltage
transformer
CT/PT access(Secondary current/
voltage5A/100V)
|
|
FKG110-Var
|
|
FKG110-W
|
80×80-105
Fixed hole
spacing for 64
|
Φ71
Fixed hole
spacing for Φ5
|
1-5000Kvar
|
|
FKG110-Var
|
Directions for use：
1.According to user needs to cross the red line on the set value, or made with red set data pointer instrument.
2.According to user needs tailored to 10～20 reverse power calibration.
3.For active power and reactive power measurement.
|
