Digital intelligent panel meter is suitable for measuring and displayingelectrical
parameters of current, voltage,power,frequency in electric grid, automation systems
. Set the rate through the panel, visual display system of a side operating point
parameters. The meters with high accuracy, good stability, resistance to
vibration, etc., candirectly replace the original pointer meter
|
Spread Angle
|
Model
|
Overall
dimensions - depth
|
The size
of hole
|
The amount
limit specifications
|
Access instructions
|
G(Wide Angle)
240°～270°
|

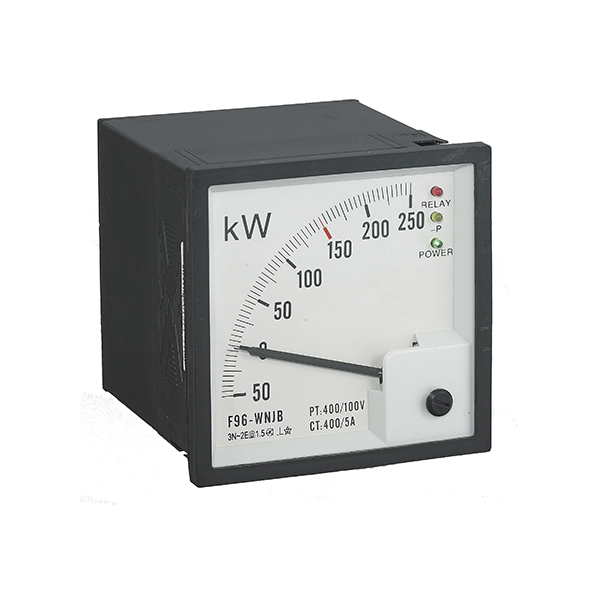

FKG96-WNJ-96
|
96X96-108
|
92X92
|
800-2000W
|
Direct input
|
|
0.8-3000KM
|

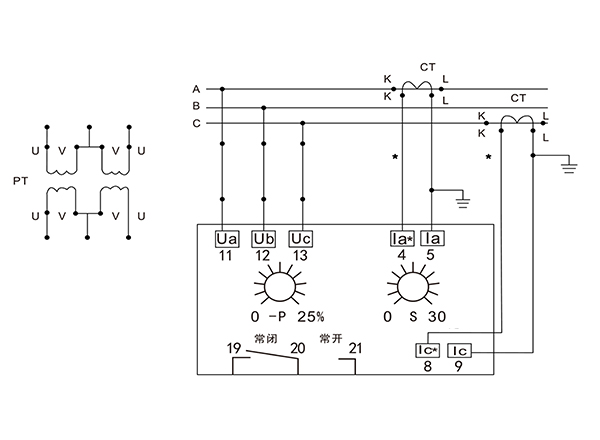

The current/voltage
transformer CT/PT
access(Secondary
current/voltage5A/100V)
|
|
1-6000MW
|
Z（Right Angle）
90°C
|

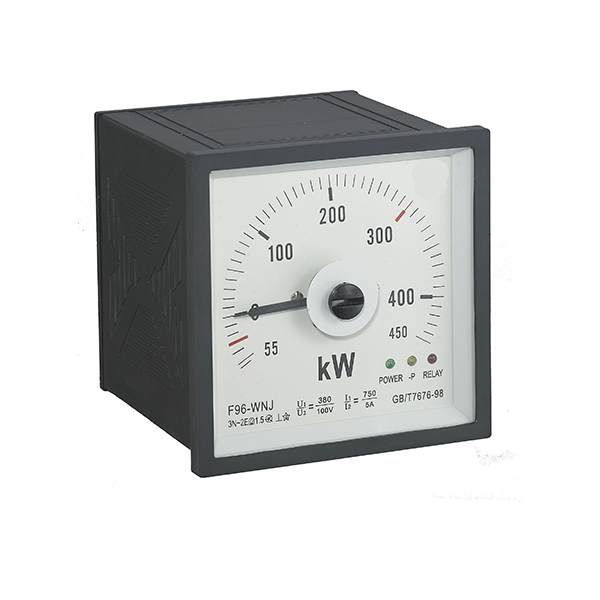

FKZ96-WNJ-96
|
96X96-65
|
92X92
|
600-1500Var
|
Direct input
|
|
1-3000Kvar
|
The current/voltage
transformer CT/PT
access(Secondary
current/voltage5A/101V)
|
|
1-5000Kvar
|
|
Directions for use：
1.When switched on, the green light is lit, the said instrument is in working condition.
2.When reverse power more than the set point, the yellow(-P) indicator, after a set time delay, the red light(RELAY) is lit, said the relay has state of motion and change.
3.Reverse power relay with inverse time characteristics.
4.The back of the instrument has two potentiometer to adjust knob, which limit left for the full adjustment, the right to
limit zero adjustment, instrument factory have been set according to the order;Single user field adjustment requirements, if any, can be adjusted in itself.
5.Set of three phase power measurement indicator and reverse power relay functions as one of the multi-function meter, suitable for power measurement of ship power grid and generator protection and control.
6.Power consumption:≤3VA；The output capacity of getting an electric shock：AC400V,5A;DC28V,5A.
|
