Digital intelligent panel meter is suitable for measuring and displayingelectrical
parameters of current, voltage,power,frequency in electric grid, automation systems
. Set the rate through the panel, visual display system of a side operating point
parameters. The meters with high accuracy, good stability, resistance to
vibration, etc., candirectly replace the original pointer meter
|
Spread Angel
|
Model
|
Overall dimensions - depth
|
The size of hole
|
The amount limit specifications
|

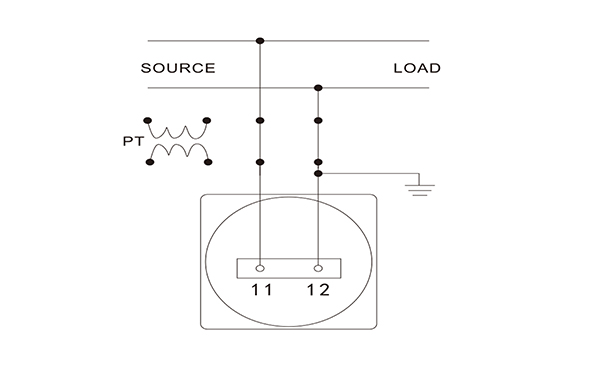

Access instructions
|
G(Wide Angle)
240°～270°
|
FKG96-Hz
|
96X96-108
|
92X92
|
45-55Hz
55-65Hz
45-65Hz
350-450Hz
|
100V、220V、380V、400V、440V
380/100V
400/100V
440/110V
690/100V
|
|
FKG72-Hz
|
72X72-108
|
68X68
|
Z（Right Angle）
90°C
|
FKZ96-Hz
|
96X96-65
|
92X92
|
|
FKZ72-Hz
|
72X72-65
|
68X68
|
G(Wide Angle)
240°～270°
|
FKG110-Hz
|
110×110-95
Fixed hole spacing for 90
|
Φ101
Fixed hole spacing for Φ6
|
|
FKG80-Hz
|
80×80-105
Fixed hole spacing for 64
|
Φ71
Fixed hole spacing for Φ5
|
Directions for use：
1.Used in the power grid frequency measurement.
2.According to user needs to cross the red line on the set value, or made with red line set data pointer instrument.
3.Can be made with black surface inside the light meter, can be made according to the needs of user surface with white light meter.
4.Can take 4-20 ma analog output function, of output, analog output precision is 1%.
|
