Timer Switch is according to the time set by the user,automatically turn on
and turn off the variety of electrical equipment.Control object can
lights,light boxes,neon signs,production equipment, agriculture,aquaculture,
warehouse exhaust dehumidifier automatically preheat optioml
control products,such as radio and television equipment.
CLASSIFICATION
|
TIMER
|
MODEL
|
SUL181h
|
SYN161h
|
SUL181d
|
SYN161d
|

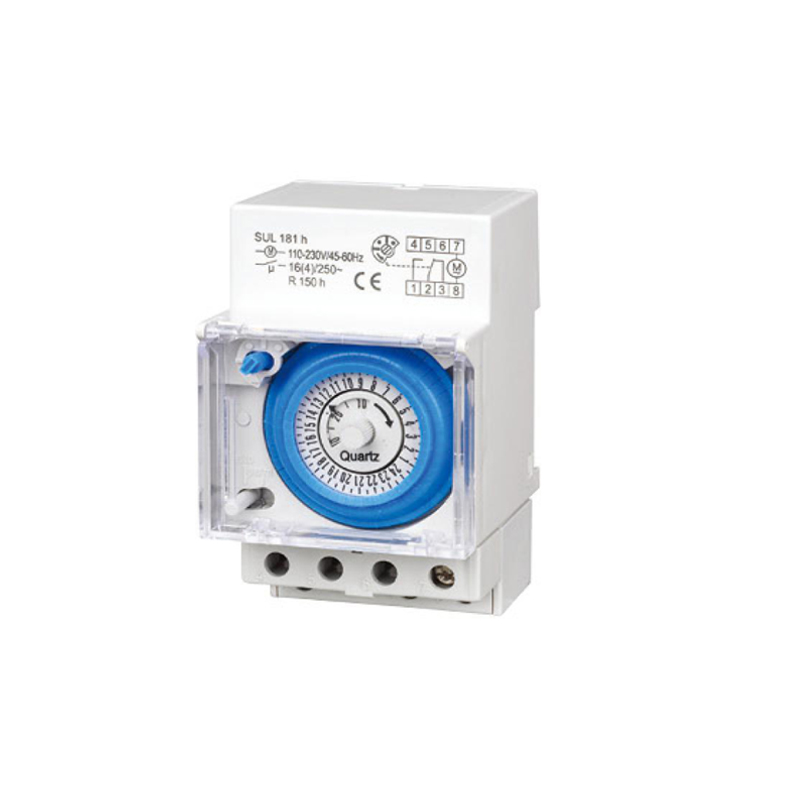

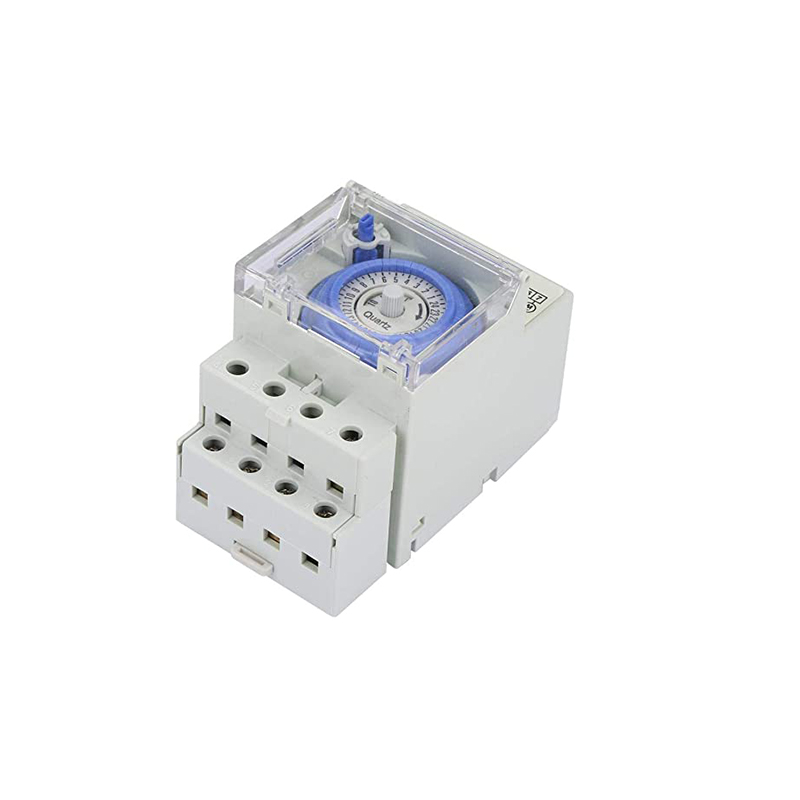

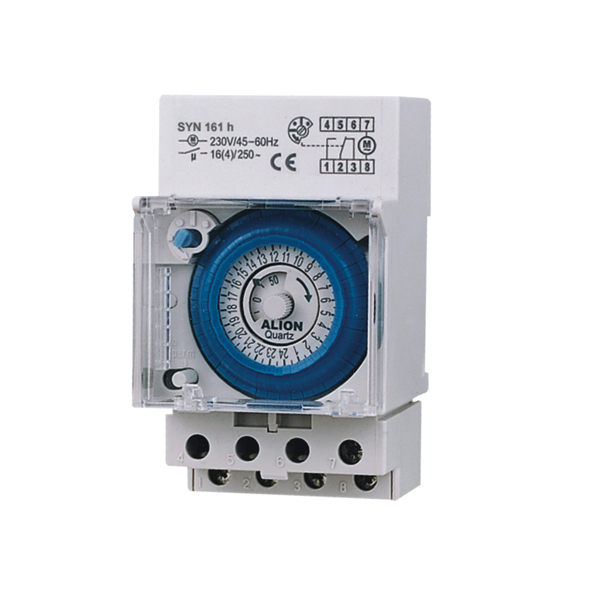

APPEARANCE
|
|
|
|
|
CONTACT CAPACITY
|
AC220V 16(4)A
|
AC220V 16(4)A
|
AC230V 16A
|
AC230V 16A
|
FULL TIMING RANGE
|
24h
|
24h
|
24h
|
24h
|
CONTACT RESISTANCE
|
≤ 50mΩ
|
≤ 50mΩ
|
≤ 50mΩ
|
≤ 50mΩ
|
INSULATION RESISTANCE
|
≥ 100MΩ
|
≥ 100MΩ
|
≥ 100MΩ
|
≥ 100MΩ
|
RATED VOLTAGE
|
110,230V AC
|
110,230V AC
|
230V AC
|
230V AC
|
LIFE
|
ELECTRICAL
|
105times
|
105times
|
105times
|
105times
|
MECHANICAL
|
107times
|
107times
|
107times
|
107times
|
AMBIENT TEMPERATURE
|
-20℃~+55℃
|
-20℃~+55℃
|
-20℃~+55℃
|
-20℃~+55℃
|

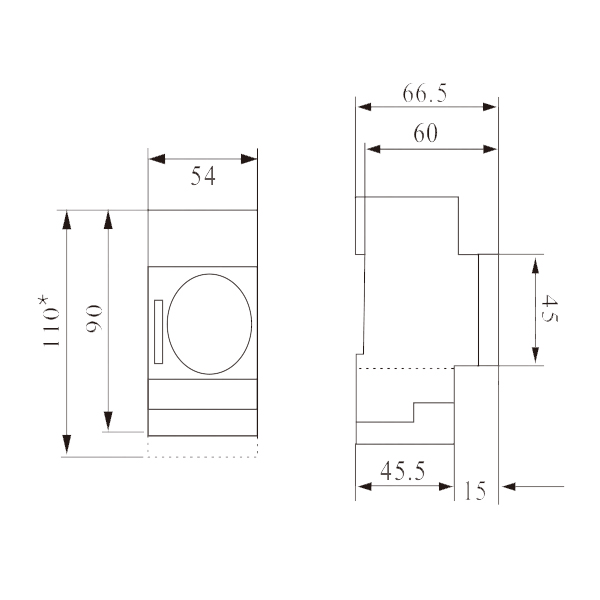

DIMENSIONS(mm)
|
|
|
STORAGE BATTERY (WORKING RESERVE)
|
Time 150h
|
Without Battery
|
Time 70h
|
Without battery
|
MINIMUM SETTING UNIT
|
30Minutes
|
30Minutes
|
15Minutes
|
15 Minutes
|
SET-UP TIMES
|
30 m/per time 48 times
|
30 m/per time 48 times
|
15 m/per time 96 times
|
15 m/per time 96 times
|
CONSUMED POWER
|
2.5VA
|
2.5VA
|
