Timer Switch is according to the time set by the user,automatically turn on
and turn off the variety of electrical equipment.Control object can
lights,light boxes,neon signs,production equipment, agriculture,aquaculture,
warehouse exhaust dehumidifier automatically preheat optioml
control products,such as radio and television equipment.
CLASSIFICATION
|
TIMER
|
MODEL
|
TB-35
|
TB-35B
|
TB-38
|
TB-38B
|

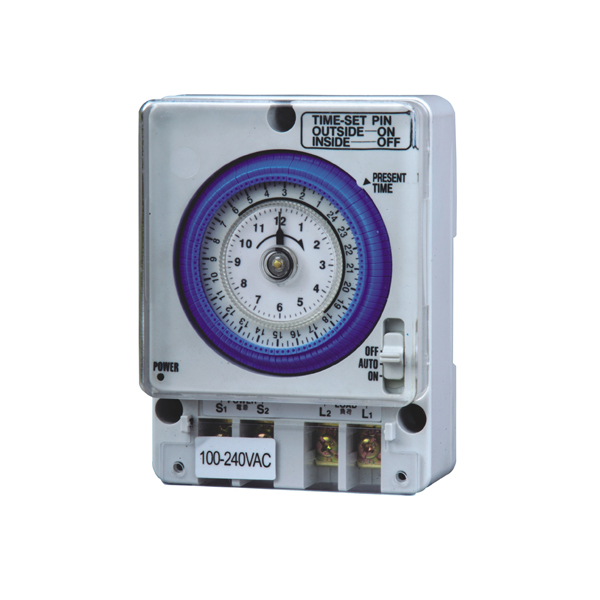

APPEARANCE
|
|
|
|
|
CONTACT CAPACITY
|
AC220V 16(10)A
|
AC220V 16(10)A
|
AC220V 16(10)A
|
AC220V 16(10)A
|
FULL TIMING RANGE
|
24h
|
24h
|
24h
|
24h
|
CONTACT RESISTANCE
|
≤ 50mΩ
|
≤ 50mΩ
|
≤ 50mΩ
|
≤ 50mΩ
|
INSULATION RESISTANCE
|
≥ 100MΩ
|
≥ 100MΩ
|
≥ 100MΩ
|
≥ 100MΩ
|
RATED VOLTAGE
|
100, 240V AC
|
100~240V AC
|
100, 240V AC
|
100~240V AC
|
LIFE
|
ELECTRICAL
|
105times
|
105times
|
105times
|
105times
|
|
MECHANICAL
|
107times
|
107times
|
107times
|
107times
|
AMBIENT TEMPERATURE
|
-20℃~+55℃
|
-20℃~+55℃
|
-20℃~+55℃
|
-20℃~+55℃
|

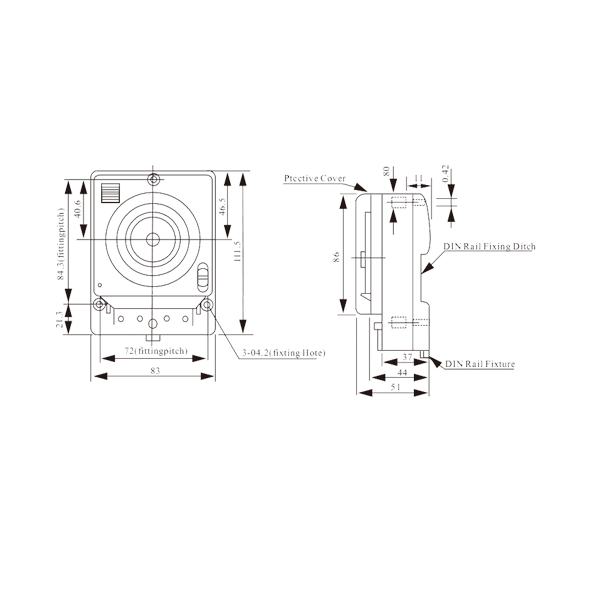

DIMENSIONS(mm)
|
|
|
STORAGE BATTERY (WORKING RESERVE)
|
Without battery
|
Time 150h 150小时
|
Without battery
|
Time 150h
|
MINIMUM SETTING UNIT
|
15Minutes
|
15Minutes
|
15Minutes
|
15Minutes
|
SET-UP TIMES
|
15 m/per time 96 times
|
15 m/per time 96 times
|
15 m/per time 96 times
|
15 m/per time 96 times
|
CONSUMED POWER
|
5VA
|
5VA
|
