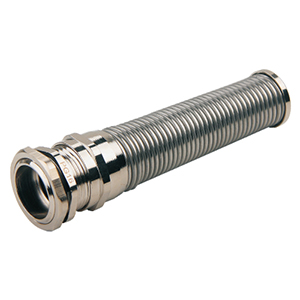

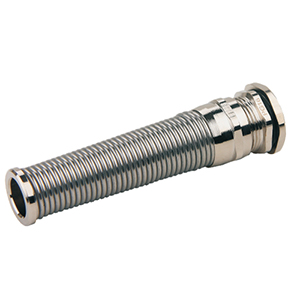

Material: Brass with nickel plated
Anti-fold spring: stainless steel 1.4310/ASTM301/SUS301
Clamp jaw: Nylon PA(UL File NO:E240925).UL94-V2
Sealing element: NBR
Thread Type: PG according to DIN 40430
Test Standard: EN50262/EN62444
Protection class: IP68(the wire/cable is in clamping range.and assemble 0-Ring on the groove)
Range of temperature: -40℃to+100℃
Application: used to protect the cable outlet to prevent excessive bending of metal cable gland
Remark: if you need other marterial of sealing element,such as silicone,EPDM,etc.pls feel free to contact us!
|
THREAD
|
Cable scope
(mm)
|
Thread length
(mm)
|
Height
(mm)
|
Spanner diameter
(mm)
|
Thread external
diameter (mm)
|
Hole size
(mm)
|
|
PG16
|
10-14
|
10
|
98
|
24
|
22.5
|
22.5-22.8
|
|
PG16
|
7-12
|
10
|
98
|
24
|
22.5
|
22 .5-22.8
|
