Floatless relay Can be used in building buildings,
integrated community residential buildings, sewers,
as well as agricultural water, water purification,
sewage treatment plants,the General Factory of a
variety of liquid level treatment, the use of a
wide range of.Ideal for level control of any
conductive liquid,Automatic Water Supply and
Drainage Control,Power Supply Connections
CLASSIFICATION
|
FLOATLESS RELAY
|
FLOATLESS RELAY
|
FLOATLESS RELAY
|
FLOATLESS RELAY
|
FLOATLESS RELAY
|
MODEL
|
AFR-1
|
PM61F-GR
|
AFS-GR
|

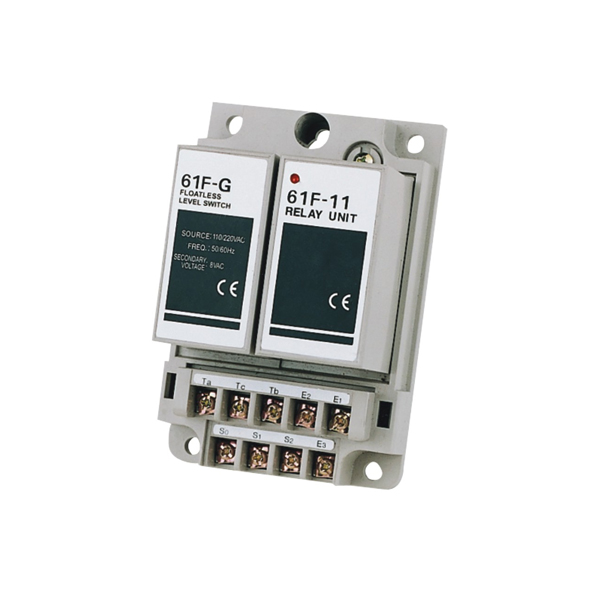

61F-G
|
61F-G1
|
APPEARANCE
|
|
|
|
|
|
DIMENSIONS(mm)
|
61H×49W×70D
|
50H×40W×58D
|
50H×40W×58D
|
79.5H×135W×127D
|
79.5H×84W×127D
|
SOCKET TYPE
|
PS-08 PF-083A(E)
|
PF085APF083A(E)
|
PF085APF083A(E)
|
--
|
--
|
SENS
-ING MODE
|
GENERAL
|
AFR-1
|
--
|
--
|
61F-G
|
61F-G
|
HIGH SENSING
|
AFR-1H
|
--
|
--
|
--
|
--
|
LONG DISTANCE
|
AFR-1L
|
--
|
--
|
--
|
--
|
LOW DENSITY
|
AFR-1D
|
--
|
--
|
--
|
--
|
TWO LINES
|
AFR-1R
|
PM61F-GR
|
AFS-GR
|
--
|
--
|
RATED VOLTAGE
|
AC:110V,220V,240V,50/60HZ
|
AC:110V,220V,240V,50/60HZ
|
INDICATOR OPERATING
|
Two LED’s use for two status
|
Two LED’s use for two status
|
OPERATE VOLTAGE
|
85~110% of rated voltage/
|
85~110% of rated voltage
|
SECOND VOLTAGE
|
8VAC(except high sensing 24VAC)
|
8VAC(except high sensing 24VAC)
|
OPERATE RESISTANCE
|
4K Ωmin.(GENERAL)
|
4K Ωmin.(GENERAL)
|
RELEASE RESISTANCE
|
15K Ωmin.(GENERAL)
|
15K Ωmin.(GENERAL)
|
RESPONSE TIME
|
Operate:80msec max, Release:160 msec max.
|
Operate:80msec max, Release:160 msec max.
动作：80msec 以下，释放：160msec 以下
|
CONTACT RATING
|
5A,250VAC(RESISTIVELOAD)
|
5A,250VAC(RESISTIVELOAD)
|
LENGTH OF CABLE
|
1Kmmax.(GENERAL)
|
1Kmmax.(GENERAL)
|
LIFE
|
MECHANICAL
|
5×106times min
|
5×106times min
|
ELECTRICAL
|
105times min
|
105times min
|
INSULATION RESISTANCE
|
100MΩ(DC 500V)min
|
100MΩ(DC 500V)min
|
DIELECTRIC STRENGTH
|
1500VAC,50/60HZ, for 1 minute
|
1500VAC,50/60HZ, for 1 minute
|
CONSUMED POWER
|
3.2VA
|
3.2VA
|
AMBIENT TEMPERATURE
|
-10℃~+55℃
|
-10℃~+55℃
|
AMBIENT HUMIDITY
|
45~85%RH
|
45~85%RH
|
WEIGHT
|
200g
|
150g
|
150g
|
750g
|
380g
|
CONNECTION DIAGRAMS
|
41B
|
41B
|
41C
|
41D
|
41E
|
