Timer relay is according to the time set by the user,
automatically turn on and turn off the variety of
electrical equipment.Control object can lights,light
boxes,neon signs,production equipment, agriculture,
aquaculture,warehouse exhaust dehumidifier automatically
preheat optioml control products,such as radio and
television equipment.
CLASSIFICATION
|
TIMER
|
TIMER
|
MODEL
|

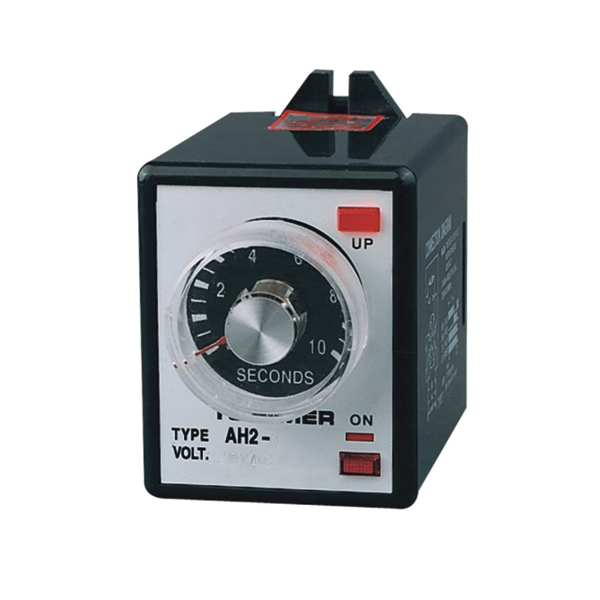

ASTP-N
|
ASTP-Y
|
AH2-N
|
AH2-Y
|
APPEARANCE
|
|
|
|
|
DIMENSIONS
|
61H×49W×70D
|
88H×58W×68D
|
61H×49W×70D
|
88H×58W×68D
|
MOUNTING
& SOCKET
|
SURFACE(-N)
|
PF083A(E) PS-08
|
|
PF083A(E) PS-08
|
|
FLUSH(-Y)
|
|
US-08 P3G-08
|
|
US-08 P3G-08
|
FULL TIMING RANGE
|
SEC:1,3,6,10,12,30,60
MIN:3,6,12,30,60
HR:3,6,12,24
|
SEC:1,3,6,12,30,60
MIN:3,6,12,30,60
HR:3,6,12,24
|
RATED VOLTAGE
|
DC(V):12,24 AC(V):12,24,110,220,240, 50/60Hz
|
DC(V):12,24 AC(V):12,24,110,220,240, 50/60Hz
|
INDICATOR OPERATING
|
Time Operating
|
ON-UP Two indicator Lamp ON-UP
|
|
CONTACT
|
MODEL
|
ASTP-N1/ ASTP-Y1
|
ASTP-N2/ ASTP-Y2
|
ASTP-N/ ASTP-Y
|
AH2-N1/ AH2-Y1
|
AH2-N2/ AH2-Y2
|
AH2-N/ AH2-Y
|
TIME LIMIT 1C
|
5A
|
|
5A
|
5A
|
|
5A
|
TIME LIMIT 2C
|
|
5A
|
|
|
5A
|
|
INSTANTANEOUS 1C
|
|
|
5A
|
|
|
5A
|
|
LIFE
|
MECHANICAL
|
5×106 times
|
5×106 times
|
ELECTRICAL
|
105 times
|
105 times
|
|
ACCURACY
|
REPEAT ERROR
|
±1% max
|
±1% max
|
SETTING ERROR
|
±10% max
|
±10% max
|
VOLTAGE ERROR
|
±1% max
|
±1% max
|
TEMP. ERROR
|
±2% max
|
±2% max
|
RESET TIME
|
0.1 sec max
|
0.1 sec max
|
CONSUMED POWER
|
2VA
|
3VA
|
AMBIENT TEMPERATURE
|
-10℃~+55℃
|
-10℃~+55℃
|
AMBIENT HUMIDITY
|
48~85%RH
|
48~85%RH
|
WEIGHT
|
220g
|
220g
|
CONNECTION DIAGRAMS & TIMING CHART
|
39A
|
39B
|
39C
|
39D
|
39E
|
39F
|
