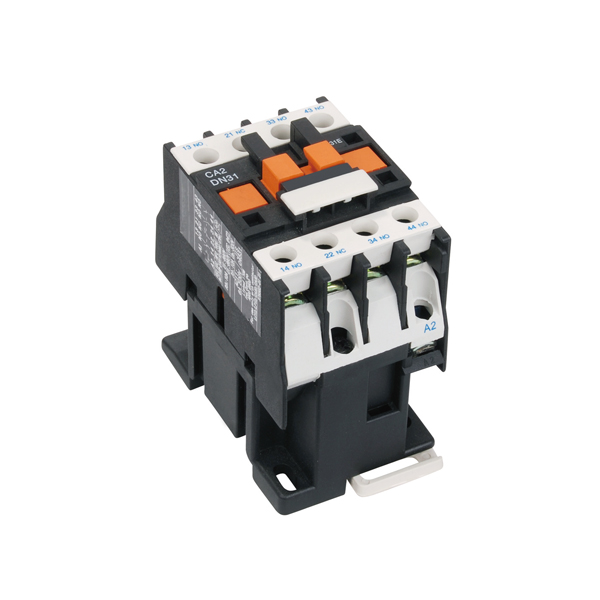

JZC4 (CA2-DN1) series contactor type relay is used
in the control circuit with AC 50Hz (or 60Hz),voltage
up to 380V and AC voltage up to 220V TO control various
kinds of electromagnetic loop, enhance the signal and transmit the signal.
The product conforms to the GB14048.4, IEC60947-4-1 standards.
|
(V) Rated insulation voltage
|
660
|
|
Conventional hermal current
|
10
|
|
Min load
|
6V x 10mA
|
|
|
DC
|
DC-11 220V 33W, DC-13 50W
|
|
Rated operational power
|
AC
|
AC-11 380V 300VA, AC-15 400VA
|
|
Electrical endurance
|
120
|
|
Mechanical endurance
|
1000
|
|
/h) Frequency of operation
|
3000
|
|
Coil voltage
|
24, (36), 48, 110, (127), 220, 380
|
|
Operation characteristics
|
85~110%Us, 20~75%Us
|
|
Operation times
|
9~20ms
|
|
Coil techincal
|
NO contact closes
|
15~22ms
|
|
NO contact opens
|
5~15ms
|
|
NO contact closes
|
7~20ms
|
|
Switching time of NO and NC contacts
|
1.5ms
|
