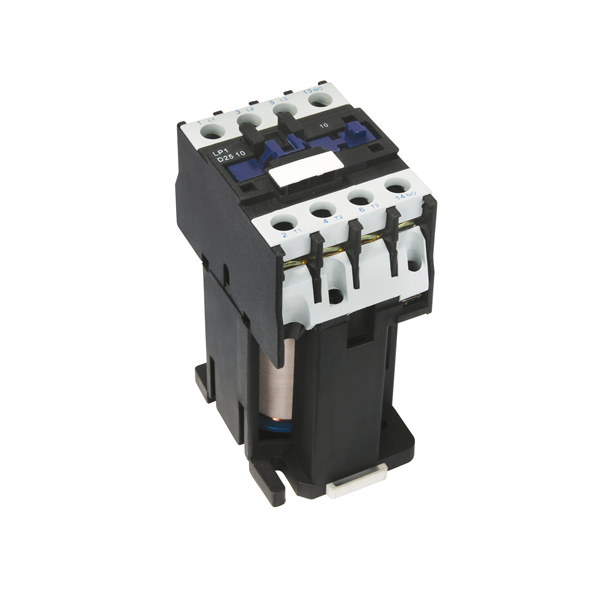

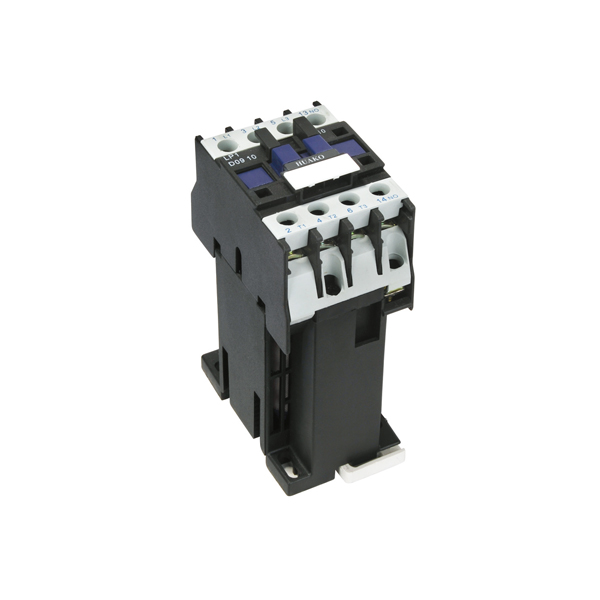

CJX2(LC1-K) series AC contactor (simplified contactor
in the following) is suitable for using in the circuit
up to the rated operating voltage 690V AC 50Hz or 60Hz,
DC operating voltage, for controlling kinds of magnetic
coil, signal amplification and transferring the signals
to related control elements.
|
Type
|
Rated working
current(A)
|
Rated working
voltage(V)
|
Rated isolation
voltage(V)
|
Control power
|
Electrical appliance
endurance
|
Quantity
of contact
|
|
220V
|
380V
|
415V
|
440V
|
660V
|
|
CJX2-Z09
|
9
|
380V
|
660V
|
2.2
|
4
|
4
|
4
|
5.5
|
100
|
3P+NO 3P+NO
3P+NO+NC
|
|
CJX2-Z12
|
12
|
3
|
5.5
|
5.5
|
5.5
|
7.5
|
100
|
|
CJX2-Z18
|
18
|
4
|
7.5
|
9
|
9
|
9
|
100
|
|
CJX2-Z25
|
25
|
5.5
|
11
|
11
|
11
|
15
|
100
|
|
CJX2-Z32
|
32
|
7.5
|
15
|
15
|
15
|
18.5
|
80
|
|
CJX2-Z40
|
40
|
11
|
18.5
|
22
|
22
|
30
|
80
|
|
CJX2-Z50
|
50
|
15
|
22
|
25
|
30
|
33
|
60
|
|
CJX2-Z65
|
65
|
18.5
|
30
|
37
|
37
|
37
|
60
|
|
CJX2-Z80
|
80
|
22
|
37
|
45
|
45
|
45
|
60
|
|
CJX2-Z95
|
95
|
25
|
45
|
45
|
45
|
45
|
60
|
