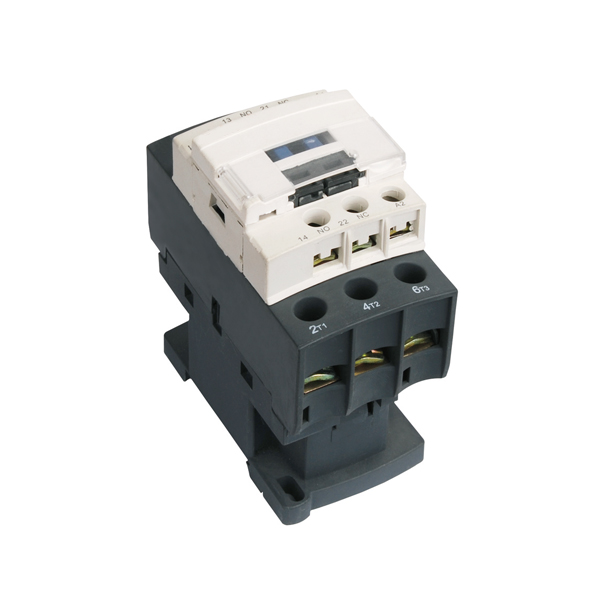

CJX2(LC1-K) series AC contactor (simplified contactor
in the following) is suitable for using in the circuit
up to the rated operating voltage 690V AC 50Hz or 60Hz,
DC operating voltage, for controlling kinds of magnetic
coil, signal amplification and transferring the signals
to related control elements.
|
Type
|
CJX2-K06
|
CJX2-K09
|
CJX2-K12
|
|
AC-3
|
6
|
9
|
12
|
|
Ie(A) Rated working current
|
5
|
7.5
|
10
|
|
Ith(A) Conventional thermal current
|
16
|
20
|
20
|
|
Ue(V) Rated working voltage
|
380、660
|
|
Ui(V) Rated isolation voltage
|
690
|
|
AC-3 (6Ie Ie)
|
Electrical endurance
|
0.5 x 106
|
|
h-1 Switching frequency
|
1200
|
|
AC-4 (6Ie Ie)
|
Electrical endurance
|
10x104
|
|
h-1 Switching frequency
|
300
|
|
Mechanical endurance
|
3x106
|
|
Auxiliary contactor
|
Acoventiont thermal current
|
6A
|
|
Electrical endurance
|
AC-15(360vA)
|
5x106
|
|
DC-13(33W)
|
5x106
|
|
Coil technical parameter
|
(Us) Rated voltage of contact
|
AC: 12, 24, 45, 110, 220, 380; DC: 12, 24, 45, 110, 220
|
|
Attracting voltage
|
AC: 0.85~1.1Us; DC: 0.85~1.1Us
|
|
Release voltage
|
AC: 0.1~0.75Us; DC: 0.2~0.75Us
|
|
(VA) Coil power
|
Attracting
|
40
|
|
Closed
|
4
|
|
Consumed power
|
1.2W
|
|
Attracting time
|
6~18ms
|
|
Operating time
|
5~23ms
|
|
Contact power
|
0.8; 0.3
|
