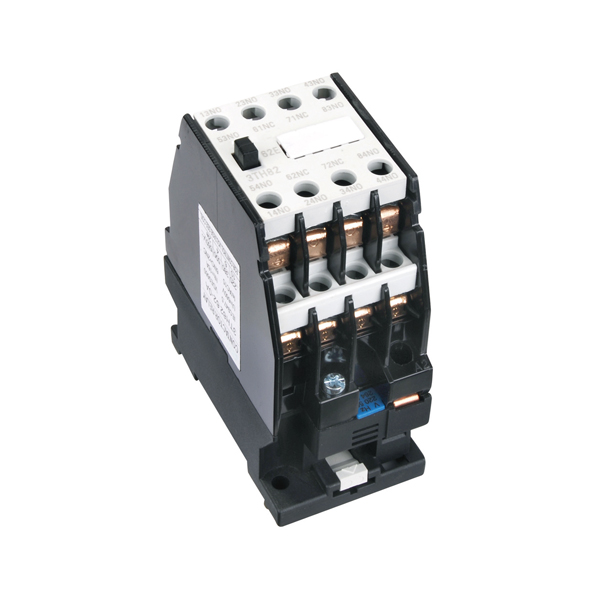

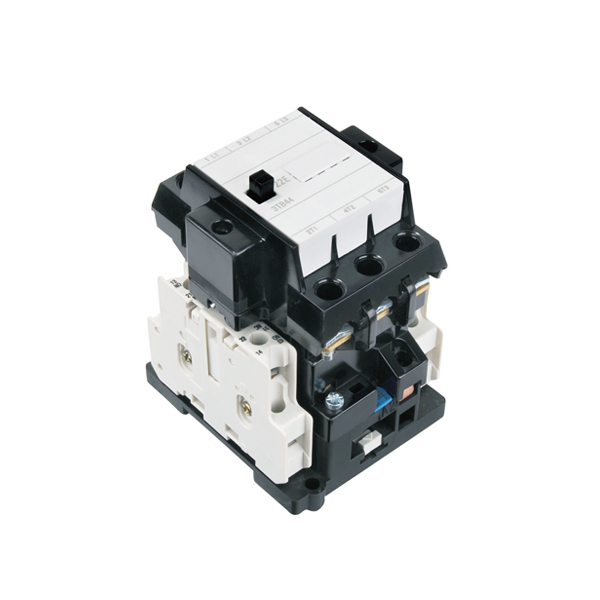

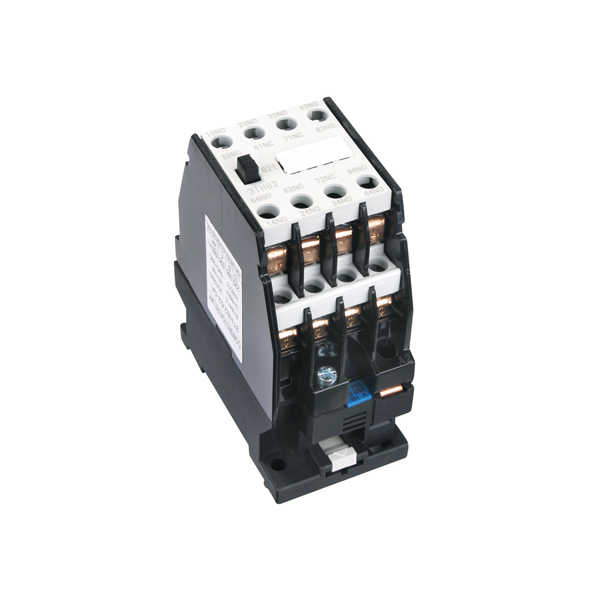

CJX1(3TB) series AC contactors are suitable for
clectrcal system with AC 50/60Hz, rated operational
current up 9-32A, it is mainly used to make or make
or break remote motors or system. Theyform electromagnetic
starters with suitable therm aloverload relays JRS2 (3UA5)
series to protectsy-stem and motors-against overload or
phase failure. They are made acc-ording to IEC slandard.
|
Type
|
(V) Rated
insulation
voltage
|
x 106
|
x106
Electric life
|
(380V)(A) Rated
operating current
|
(kW)50Hz Controllable
power of motor
|
|
AC-3
|
AC-4
|
|
AC-3
|
AC-4
|
AC-3
|
AC-4
|
230/
220V
|
400/
380V
|
500V
|
690/
660V
|
400/
380V
|
690/
660V
|
|
CJX1-9
|
660
|
10
|
1
|
0.2
|
9
|
3.3
|
2.4
|
4
|
5.5
|
5.5
|
1.4
|
2.4
|
|
CJX1-12
|
660
|
10
|
1
|
0.2
|
12
|
4.3
|
3.3
|
5.5
|
7.5
|
7.5
|
1.9
|
3.3
|
|
CJX1-16
|
660
|
10
|
1
|
0.2
|
16
|
7.7
|
4
|
7.5
|
10
|
11
|
3.5
|
6
|
|
CJX1-22
|
660
|
10
|
1
|
0.2
|
22
|
8.5
|
6.1
|
11
|
11
|
11
|
4
|
6.6
|
|
CJX1-32
|
660
|
10
|
1
|
0.2
|
32
|
15.6
|
8.5
|
15
|
15
|
23
|
7.5
|
13
|
