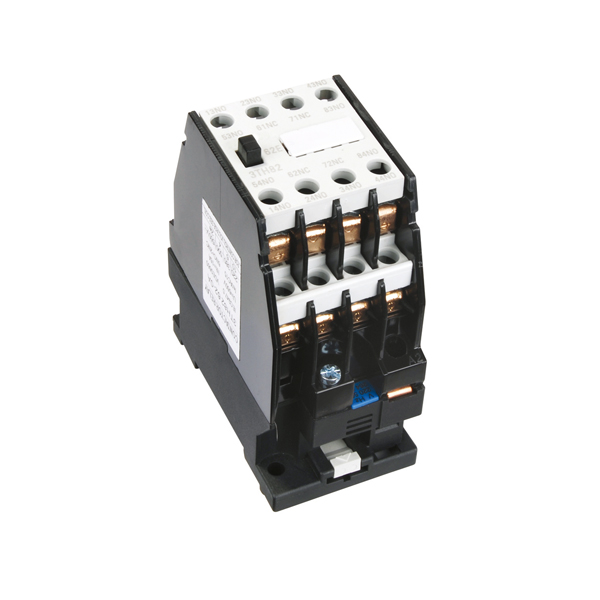

The products are suitable for using in the
controlling circuits up to rated voltage A.C.
660V or D.C. 660V 50Hz or 60Hz,for controlling
various electro,agnetic coils to increase signal
or transfer signal to relative controlling elements.
|
Type
|
JZC1(3TH80)
|
JZC1(3TH82)
|
JZC1(3TH40)
|
JZC1(3TH42)
|
JZC1(3TH30)
|
|
Ui(V) Rated isolation voltage
|
660
|
660
|
690
|
690
|
690
|
|
Ie(A) Rated working current
|
AC-15(AC-11)
|
6
|
6
|
6
|
6
|
6
|
|
DC-13(DC-11)
|
0.25
|
0.25
|
0.25
|
0.25
|
0.25
|
|
(x106)Electrical endurance
|
AC-15(AC-11)
|
30
|
30
|
30
|
30
|
30
|
|
Switching frequency
|
AC-3
|
1.2
|
1.2
|
1.2
|
1.2
|
1.2
|
|
AC-15 DC-13
|
1000
|
1000
|
1000
|
1000
|
1000
|
|
Mechanical endurance (x106)
|
36
|
36
|
36
|
36
|
36
|
|
Operation characteristics
|
85-110%,20~75%Us
|
|
Operation times
|
9~20ms
|
|
(A) Acoventiont thermal current
|
10
|
10
|
10
|
10
|
10
|
