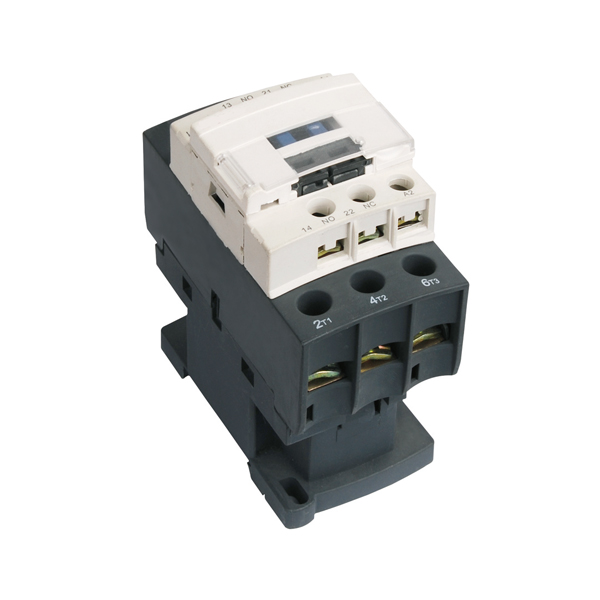

CJX2(LC1-K) series AC contactor (simplified contactor
in the following) is suitable for using in the circuit
up to the rated operating voltage 690V AC 50Hz or 60Hz,
DC operating voltage, for controlling kinds of magnetic
coil, signal amplification and transferring the signals
to related control elements.
|
Type
|
CJX2N-09
|
CJX2N-12
|
CJX2N-18
|
CJX2N-25
|
CJX2N-32
|
CJX2N-38
|
CJX2N-40
|
CJX2N-50
|
CJX2N-65
|
CJX2N-80
|
CJX2N-95
|
|
Rated operational current
|
9
|
12
|
18
|
25
|
32
|
38
|
40
|
50
|
65
|
80
|
95
|
|
Rated thermal curretn Ith(A)
|
25
|
25
|
32
|
40
|
50
|
50
|
60
|
75
|
80
|
110
|
125
|
|
Rated insulating voltage Ui(V)
|
690
|
690
|
690
|
690
|
690
|
690
|
1000
|
1000
|
1000
|
1000
|
1000
|
|
Rated operating voltage Ue(V)
|
690
|
690
|
690
|
690
|
690
|
690
|
1000
|
1000
|
1000
|
1000
|
1000
|
|
Rated operating AC-3
|
220/230V
|
2.2
|
3
|
4
|
5.5
|
7.5
|
9
|
11
|
15
|
18.5
|
22
|
25
|
|
380/440V
|
4
|
5.5
|
7.5
|
11
|
15
|
18.5
|
18.5
|
20
|
30
|
37
|
45
|
|
415/440V
|
4
|
5.5
|
9
|
11
|
15
|
18.5
|
22
|
25
|
37
|
45
|
45
|
|
500V
|
5.5
|
7.5
|
10
|
15
|
18.5
|
18.5
|
22
|
30
|
37
|
45
|
45
|
|
660/690V
|
5.5
|
7.5
|
10
|
15
|
18.5
|
18.5
|
30
|
33
|
37
|
45
|
45
|
|
Rated operating AC-4
|
220/230V
|
1.5
|
1.5
|
2.2
|
3
|
4
|
4
|
4
|
-
|
-
|
-
|
-
|
|
380/400V
|
2.2
|
3.7
|
4
|
5.5
|
7.5
|
7.5
|
9
|
-
|
-
|
-
|
-
|
|
415/440V
|
2.2
|
3
|
3.7
|
5.5
|
7.5
|
7.5
|
9-11
|
-
|
-
|
-
|
-
|
|
500V
|
3
|
4
|
5.5
|
7.5
|
9
|
9
|
11
|
-
|
-
|
-
|
-
|
|
660/690V
|
4
|
5.5
|
7.5
|
10
|
11
|
11
|
15
|
-
|
-
|
-
|
-
|
|
Frequency of operation(I/h)
|
1200
|
1200
|
1200
|
1200
|
1000
|
1000
|
1000
|
600
|
600
|
600
|
600
|
|
(x104) Electrical endurance
|
AC-3
|
100
|
100
|
100
|
100
|
80
|
80
|
80
|
80
|
80
|
60
|
60
|
|
AC-4
|
20
|
20
|
20
|
20
|
20
|
20
|
15
|
15
|
15
|
10
|
10
|
|
|
15
|
15
|
15
|
15
|
15
|
15
|
6
|
8
|
8
|
10
|
10
|
|
|
|
Mechanical endurance(x106)
|
|
Operating voltage range of coil
|
Close voltage:(85~110%)Us; Open voltage: (20~75%)Us
|
