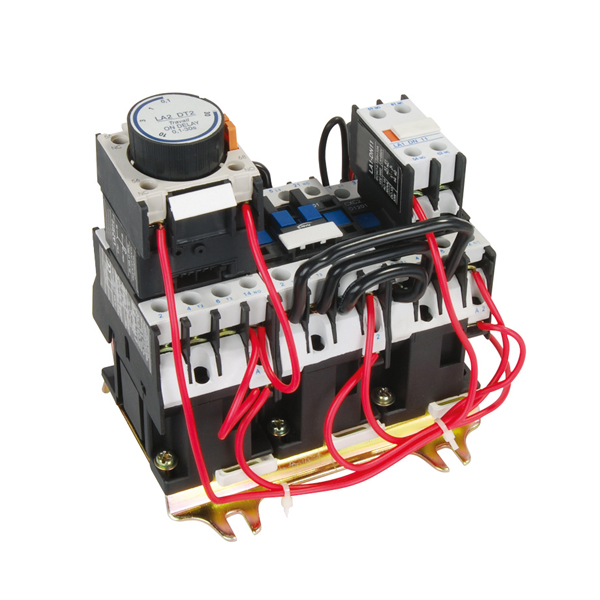

QJX2(LC3-D) series start-delta reduced voltage
starter is suitable for starting motor in the
circuit of AC 50/60Hz, voltage up to 660V and
current up 9~95A. It is provided with a timer
for automatic changeover of star-delta to reduce
the voltage and current of motor stqrting.
They comply with IEC60947-4-1, GB140848.4 standard.
|
Type
|
(A) (AC-3)
Rated opertional current
|
kW(AC-3)Three-phase motor capacity
|
Ie(A) Rated current
|
|
220V
|
380V
|
415V
|
440V
|
|
QJX2-09
|
9
|
4
|
7.5
|
7.5
|
7.5
|
15.5
|
|
QJX2-12
|
12
|
5.5
|
10
|
10
|
10
|
18.5
|
|
QJX2-18
|
18
|
11
|
15
|
15
|
15
|
22
|
|
QJX2-25
|
25
|
11
|
18.5
|
22
|
22
|
37
|
|
QJX2-32
|
32
|
15
|
25
|
25
|
25
|
44
|
|
QJX2-40
|
40
|
18.5
|
33
|
37
|
37
|
60
|
|
QJX2-50
|
50
|
25
|
45
|
45
|
45
|
72
|
|
QJX2-65
|
65
|
30
|
55
|
59
|
59
|
98
|
|
QJX2-80
|
80
|
37
|
63
|
75
|
75
|
112
|
|
QJX2-95
|
95
|
45
|
80
|
80
|
80
|
138
|
