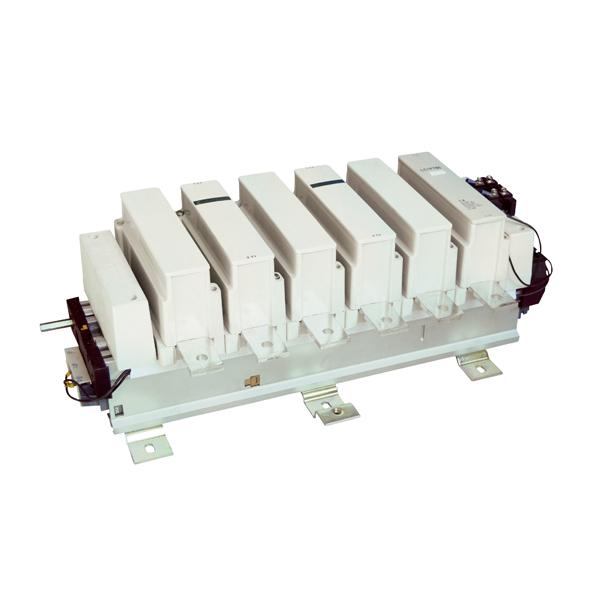

CJX2(LC1-F) series AC contactor (simplified as contactor
in the following) is used in 50Hz or 60Hz, if it is
allocated with special coil, which could be used in the
circuit of 40~400Hz, voltage up to 660V, rated working
current up to less than 630A and be used for putting
through and breaking the main circuit and also for
frequent staring and controlling motor. It can unify
the general electrical equipment such as all kinds of
relay, which can used for controlling all kinds of electrical
equipment motor and circuit. The auxiliary contact group,
air time-delay head, mechanical interlock contactor and it
can also from mechanical interlock contactor and star-triangle
starter. The thermorelay and it can form the magnetic starter.
|
Type
|
Rated opertional current
|
AC-3(kw) Rated controlled power
|
|
AC1-θ<40℃
|
380V AC3
|
220V
|
380V
|
415V
|
440V
|
500V
|
660V
|
1000V
|
|
CJX2-F115
|
200
|
115
|
30
|
55
|
59
|
59
|
75
|
80
|
65
|
|
CJX2-F150
|
250
|
150
|
40
|
75
|
80
|
80
|
90
|
100
|
65
|
|
CJX2-F185
|
275
|
185
|
55
|
90
|
100
|
100
|
110
|
110
|
100
|
|
CJX2-F225
|
315
|
225
|
59
|
110
|
110
|
110
|
129
|
129
|
100
|
|
CJX2-F265
|
350
|
265
|
75
|
132
|
140
|
140
|
160
|
160
|
147
|
|
CJX2-F330
|
450
|
330
|
90
|
160
|
180
|
200
|
200
|
220
|
160
|
|
CJX2-F400
|
500
|
400
|
110
|
200
|
220
|
250
|
257
|
280
|
185
|
|
CJX2-F500
|
700
|
500
|
147
|
250
|
280
|
295
|
335
|
335
|
335
|
|
CJX2-F630
|
1000
|
630
|
200
|
335
|
375
|
400
|
400
|
450
|
450
|
|
CJX2-F800
|
1600
|
800
|
220
|
400
|
425
|
425
|
450
|
475
|
450
|
