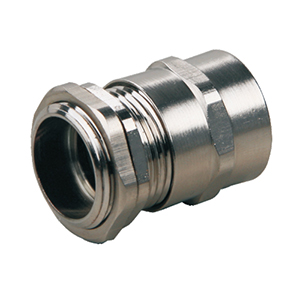

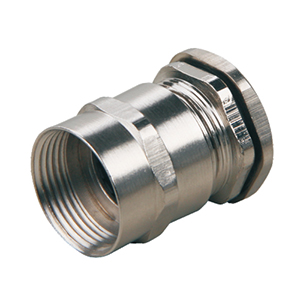

Material: Brass with nickel plated
Clamp jaw: Nylon PA(UL File NO:E240925).UL94-V2
Sealing element: NBR
Thread Type: Metric according to EN 60423
Protection class: IP68(the wire/cable is in clamping range.and assemble 0-Ring on the groove)
Range of temperature: -40℃to+100℃
Application: It need to have seal and tensile,while the need for external hoses occasions
Remark: if you need other marterial of sealing element,such as silicone,EPDM,etc.pls feel free to contact us!
|
THREAD
|
Cable
scope
(mm)
|
Thread
length
(mm)
|
Height
(mm)
|
Internal
thread
(mm)
|
The
internal
thread
lenght
(mm)
|
Spanner
diameter
(mm)
|
Thread
external
diameter
(mm)
|
Hole
size
(mm)
|
|
M32x1.5
|
18-25
|
8
|
45
|
M32x1.5
|
15
|
40
|
32
|
32-32.3
|
|
M32x1.5
|
13-20
|
8
|
45
|
M32x1.5
|
15
|
40
|
32
|
32-32.3
|
