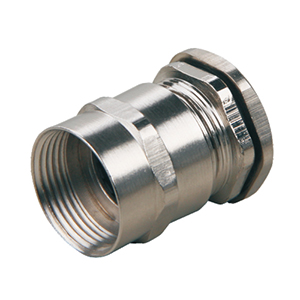

Material: Brass with nickel plated
Clamp jaw: Nylon PA(UL File NO:E240925).UL94-V2
Sealing element: NBR
Thread Type: Metric according to EN 60423
Protection class: IP68(the wire/cable is in clamping range.and assemble 0-Ring on the groove)
Range of temperature: -40℃to+100℃
Application: It need to have seal and tensile,while the need for external hoses occasions
Remark: if you need other marterial of sealing element,such as silicone,EPDM,etc.pls feel free to contact us!
|
THREAD
|
Cable
scope
(mm)
|
Thread
length
(mm)
|
Height
(mm)
|
Internal
thread
(mm)
|
The
internal
thread
lenght
(mm)
|
Spanner
diameter
(mm)
|
Thread
external
diameter
(mm)
|
Hole size
(mm)
|
|
M20x1.5
|
6-12
|
6.5
|
35
|
M20x1.5
|
13
|
22
|
20
|
20-20.3
|
|
M20x1.5
|
5-9
|
6.5
|
35
|
M20x1.5
|
13
|
22
|
20
|
20-20.3
|
|
M20x1.5
|
10-14
|
6.5
|
37
|
M20x1.5
|
13
|
24
|
20
|
20-20.3
|
|
M20x1.5
|
7-12
|
6.5
|
37
|
M20x1.5
|
13
|
24
|
20
|
20-20.3
|
