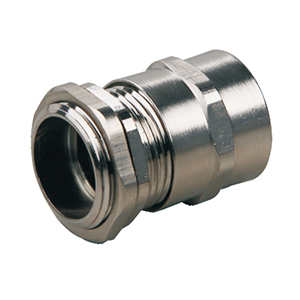

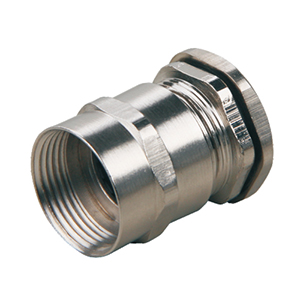

Material: Brass with nickel plated
Clamp jaw: Nylon PA(UL File NO:E240925).UL94-V2
Sealing element: NBR
Thread Type: PG according to DIN 40430
Protection class: IP68(the wire/cable is in clamping range.and assemble 0-Ring on the groove)
Range of temperature: -40℃to+100℃
Application: It need to have seal and tensile,while the need for external hoses occasions
Remark: if you need other marterial of sealing element,such as silicone,EPDM,etc.pls feel free to contact us!
|
THREAD
|
Cable
scope
(mm)
|
Thread
length
(mm)
|
Height
(mm)
|
Internal
thread
(mm)
|
The
internal
thread
lenght
(mm)
|
Spanner
diameter
(mm)
|
Thread
external
diameter
(mm)
|
Hole size
(mm)
|
|
PG7
|
3-6.5
|
5
|
29
|
PG7
|
11
|
14
|
12.5
|
12.5-12.8
|
|
PG7
|
2-5
|
5
|
29
|
PG7
|
11
|
14
|
12.5
|
12.5-12.8
|
