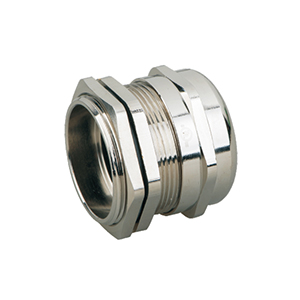

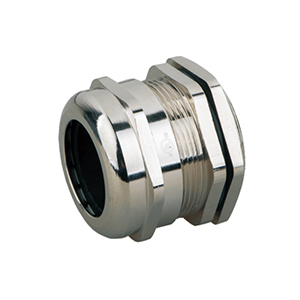

Material: Brass with nickel plated ( CuZn39Pb3, ASTM C37800, JIS C37800 )
Clamp jaw: Nylon PA.UL94-V0
Sealing element: NBR
Thread Type: NPT according to ANSI/ASME B 1.20.1
Test Standard: EN50262 /EN62444 /UL514B
Protection class: IP68/IP69K(the wire/cable is in clamping range.and assemble 0-Ring on the groove)
Range of temperature: -40℃to+100℃
UL/CSA Cert ID: E343544
Application: apply to all fire prevention, sealing, fixed, the occasion of non-slip requirements
|
THREAD
|
Cable scope
(mm)
|
Thread length
(mm)
|
Height (mm)
|
Spanner diameter
(mm)
|
Thread external
diameter (mm)
|
Hole size
(mm)
|
|
NPT1 1/2
|
23-32
|
20
|
35
|
50
|
48
|
48-48.3
|
|
NPT1 1/2
|
20-26
|
20
|
35
|
50
|
48
|
48-48.3
|
