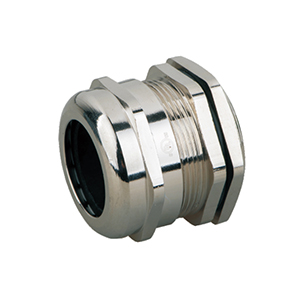

Material: Brass with nickel plated ( CuZn39Pb3, ASTM C37800, JIS C37800 )
Clamp jaw: Nylon PA.UL94-V0
Sealing element: NBR
Thread Type: PG according to DIN 40430
Test Standard: EN50262 /EN62444 /UL514B
Protection class: IP68/IP69K(the wire/cable is in clamping range.and assemble 0-Ring on the groove)
Range of temperature: -40℃to+100℃
UL/CSA Cert ID: E343544
Application: apply to all firre prevention,sealing,fixed,the occasion of non-slip requirements
|
THREAD
|
Cable scope (mm)
|
Thread length (mm)
|
Height (mm)
|
Spanner diameter (mm)
|
Thread external diameter (mm)
|
Hole size (mm)
|
|
PG21
|
13-18
|
10
|
25
|
30
|
28.3
|
28.3-28.6
|
|
PG21
|
9-16
|
10
|
25
|
30
|
28.3
|
28.3-28.6
|
|
Brass cable gland(long thread)
|
|
PG21L
|
13-18
|
15
|
25
|
30
|
28.3
|
28.3-28.6
|
|
PG21L
|
9-16
|
15
|
25
|
30
|
28.3
|
28.3-28.6
|
|
Brass cable gland
|
|
PG21
|
13-18
|
7
|
25
|
30
|
28.3
|
28.3-28.6
|
|
PG21
|
9-16
|
7
|
25
|
30
|
28.3
|
28.3-28.6
|
|
Brass cable gland
|
|
PG21L
|
13-18
|
12
|
25
|
30
|
28.3
|
28.3-28.6
|
|
PG21L
|
9-16
|
12
|
25
|
30
|
28.3
|
28.3-28.6
|
|
EMC Metal cable gland
|
|
PG21
|
13-18
|
7
|
25
|
30
|
28.3
|
28.3-28.6
|
|
EMC Metal cable gland(long thread)
|
|
PG21
|
13-18
|
7
|
25
|
30
|
28.3
|
28.3-28.6
|
|
Explosion-proof Metal Cable Gland
|
|
PG21
|
13-18
|
10
|
25
|
30
|
28.3
|
28.3-28.6
|
|
PG21
|
9-16
|
10
|
25
|
30
|
28.3
|
28.3-28.6
|
|
EMC Increased satety Explosion-proof Metal Cable Gland
|
|
PG21
|
13-18
|
10
|
25
|
30
|
28.3
|
28.3-28.6
|
|
PG21
|
9-16
|
10
|
25
|
30
|
28.3
|
28.3-28.6
|
