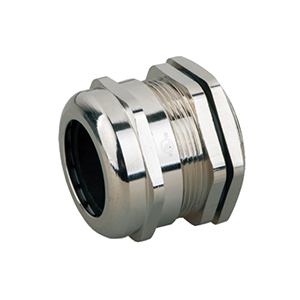

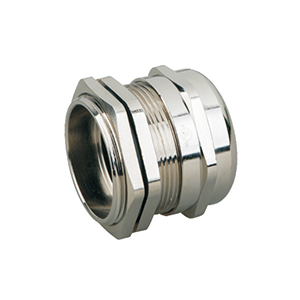

Material: Brass with nickel plated ( CuZn39Pb3, ASTM C37800, JIS C37800 )
Clamp jaw: Nylon PA.UL94-V0
Sealing element: NBR
Thread Type: PG according to DIN 40430
Test Standard: EN50262 /EN62444 /UL514B
Protection class: IP68/IP69K(the wire/cable is in clamping range.and assemble 0-Ring on the groove)
Range of temperature: -40℃to+100℃
UL/CSA Cert ID: E343544
Application: apply to all firre prevention,sealing,fixed,the occasion of non-slip requirements
|
THREAD
|
Cable scope (mm)
|
Thread length (mm)
|
Height (mm)
|
Spanner diameter (mm)
|
Thread external diameter (mm)
|
Hole size (mm)
|
|
PG13.5
|
6.7-12
|
9
|
22
|
22
|
20.4
|
20.4-20.7
|
|
PG13.5
|
5-9
|
9
|
22
|
22
|
20.4
|
20.4-20.7
|
|
Brass cable gland(long thread)
|
|
PG13.5L
|
6.7-12
|
15
|
22
|
22
|
20.4
|
20.4-20.7
|
|
PG13.5L
|
5-9
|
15
|
22
|
22
|
20.4
|
20.4-20.7
|
|
Brass cable gland
|
|
PG13.5
|
6.7-12
|
6.5
|
22
|
22
|
20.4
|
20.4-20.7
|
|
PG13.5
|
5-9
|
6.5
|
22
|
22
|
20.4
|
20.4-20.7
|
|
Brass cable gland
|
|
PG13.5L
|
6.7-12
|
10
|
22
|
22
|
20.4
|
20.4-20.7
|
|
PG13.5L
|
5-9
|
10
|
22
|
22
|
20.4
|
20.4-20.7
|
|
EMC Metal cable gland
|
|
PG13.5
|
6-12
|
6.5
|
22
|
22
|
20.4
|
20.4-20.7
|
|
EMC Metal cable gland(long thread)
|
|
PG13.5
|
6-12
|
6.5
|
22
|
22
|
20.4
|
20.4-20.7
|
|
Explosion-proof Metal Cable Gland
|
|
PG13.5
|
6.7-12
|
9
|
22
|
22
|
20.4
|
20.4-20.7
|
|
PG13.5
|
5-9
|
9
|
22
|
22
|
20.4
|
20.4-20.7
|
|
EMC Increased satety Explosion-proof Metal Cable Gland
|
|
PG13.5
|
6.7-12
|
9
|
22
|
22
|
20.4
|
20.4-20.7
|
|
PG13.5
|
5-9
|
9
|
22
|
22
|
20.4
|
20.4-20.7
|
