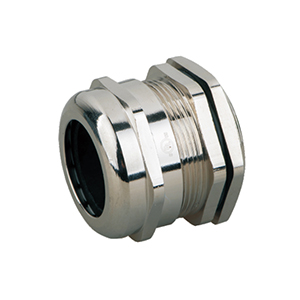

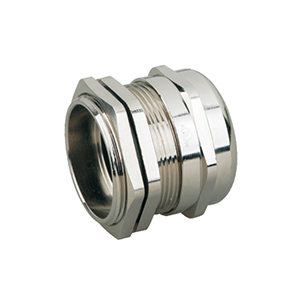

Material: Brass with nickel plated ( CuZn39Pb3, ASTM C37800, JIS C37800 )
Clamp jaw: Nylon PA.UL94-V0
Sealing element: NBR
Thread Type: PG according to DIN 60423
Test Standard: EN50262 /EN62444 /UL514B
Protection class: IP68/IP69K(the wire/cable is in clamping range.and assemble 0-Ring on the groove)
Range of temperature: -40℃to+100℃
UL/CSA Cert ID: E343544
Application: apply to all fire prevention, sealing, fixed, the occasion of non-slip requirements
|
THREAD
|
Cable scope (mm)
|
Thread length (mm)
|
Height (mm)
|
Spanner diameter (mm)
|
Thread external diameter (mm)
|
Hole size (mm)
|
|
M63X1.5
|
37-44
|
16.6
|
40
|
64/68
|
63
|
63-63.3
|
|
M63X1.5
|
29-35
|
16.6
|
40
|
64/68
|
63
|
63-63.3
|
