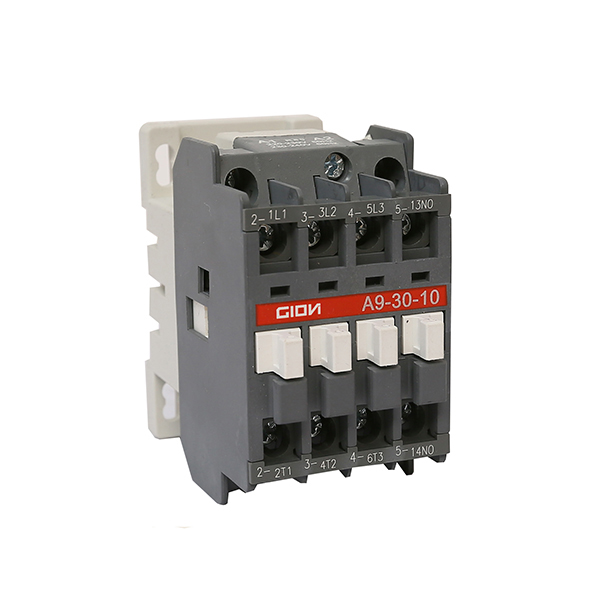

AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz,
rated current up to 630A, for making, breaking, frequently starting & controllingthe AC motor.
Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes
the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is
combined into the electromagnetic starter. The product conforms toIEC60947-4-1 stardand.
|
|
Frame Code
|
Rated Insulation
Voltages(A)
|
Conventional Free Air
|
AC-3 Rated
operating current le(A)
|
AC-3 Control
the Max. Power KW of Generator
|
|
Heat Current 1th(A)
|
220V
|
380V
|
660V
|
220V
|
380V
|
660V
|
|
A-9
|
16
|
1000
|
26
|
9
|
9
|
7
|
2.2
|
4
|
5.5
|
|
A-12
|
28
|
12
|
12
|
9
|
3
|
5.5
|
7.5
|
|
A-16
|
30
|
17
|
17
|
10
|
4
|
7.5
|
9
|
|
A-26
|
26
|
45
|
26
|
26
|
17
|
6.5
|
11
|
15
|
|
A-30
|
40
|
65
|
32
|
32
|
21
|
9
|
15
|
18.5
|
|
A-40
|
65
|
37
|
37
|
25
|
11
|
18.5
|
22
|
|
A-50
|
75
|
100
|
50
|
50
|
35
|
15
|
22
|
30
|
|
A-63
|
125
|
65
|
65
|
43
|
18.5
|
30
|
37
|
|
A-75
|
125
|
75
|
75
|
46
|
22
|
37
|
40
|
|
A-95
|
110
|
145
|
96
|
96
|
65
|
25
|
45
|
55
|
|
A-110
|
160
|
110
|
110
|
82
|
30
|
55
|
75
|
|
A-145
|
145
|
275
|
145
|
145
|
125
|
45
|
75
|
110
|
|
A-185
|
185
|
275
|
185
|
185
|
145
|
85
|
90
|
132
|
|
A-210
|
210
|
350
|
210
|
210
|
175
|
59
|
110
|
160
|
|
A-260
|
260
|
400
|
260
|
260
|
208
|
80
|
140
|
200
|
|
A-300
|
300
|
500
|
305
|
305
|
265
|
90
|
160
|
250
|
