Digital intelligent panel meter is suitable for measuring and displayingelectrical
parameters of current, voltage,power,frequency in electric grid, automation systems
. Set the rate through the panel, visual display system of a side operating point
parameters. The meters with high accuracy, good stability, resistance to
vibration, etc., candirectly replace the original pointer meter.
|
The basic
parameters
|
Model
|
Overall
dimensions - depth
|
Hole Size
|
|
LED display input
sensor output signal programmable Settings.

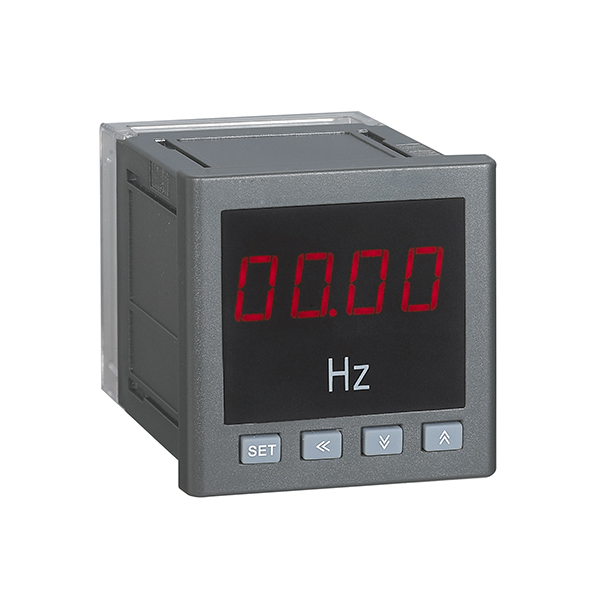

Measurement:frequency
|
FK-2FD-□
|
120X120-96
|
111X111
|
|
FK-9FD-□
|
96X96-93
|
92X92
|
|
FK-3FD-□
|
80X80-93
|
76X76
|
|
FK-AFD-□
|
72X72-93
|
68X68
|
|

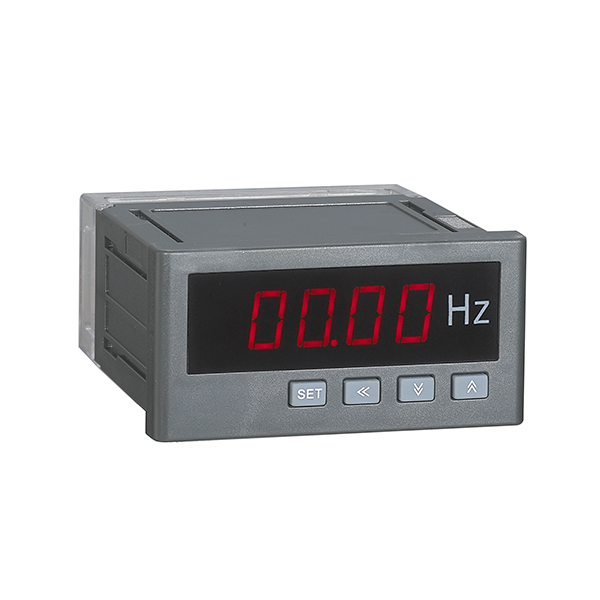

FK-BFD-□
|
96X48-93
|
92X45
|
|
FK-DFD-□
|
48X48-81
|
45X45
|
|
LED display the
input voltage.
Measuremen:frequency
|
FK-2FA-□
|
120X120-6.
|
111X111
|
|
FK-9FA-□
|
96X96-93
|
92X92
|
|
FK-3FA-□
|
80X80-93
|
76X76
|
|
FK-AFA-□
|
72X72-93
|
68X68
|
|
FK-BFA-□
|
96X48-93
|
92X45
|
|
FK-DFA-□
|
48X48-81
|
45X45
|
Working power supply：AC220V or AC/DC220V Special customized：DC24V、AC380V、440V(ordering instruction)
“□”On behalf of the optional features are as follows:
T:RS485 communication A:Relay output report to the police
B1：Analog output 1 road(4-20mA/0-20mA ordering instruction)
There is no option function“□” omit，48×48 appearance product can only output all the way.
|
