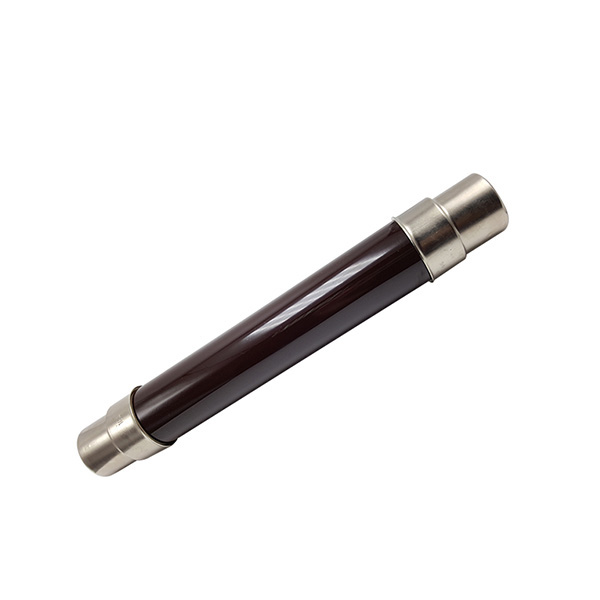

High voltage fuse is suitable for electrical power system of AC50Hz,rated voltage 3.6~40.5KV,the rated current up to 200A circuit for protection transformers and other power equipments from short-circuit and overload .It can also be used with load switch,vacuum contact and so on.
|
Rated dropout current(A)
|
Drawing no.
|
Overall dimension(mm)
|
|
Model
|
D
|
L
|
|
3.6kv
|
3.6 see figure 1
|
6.3,10,16,20,25,31.5,40
|
31.5
|
9.1
|
51
|
192
|
|
7.2kv
|
7.2 see figure1
|
6.3,10,16,20,25,31.5,40,50,63
|
31.5
|
9.1
|
51
|
292
|
|
7.2kv
|
7.2 see figure1
|
80,100,125,160
|
31.5
|
9.1
|
76
|
292
|
|
12kv
|
12 see figure 1
|
6.3,10,16,20,25,31.5,40
|
31.5
|
9.1
|
53
|
292
|
|
12kv
|
12 see figure 1
|
50,63,71,80,100
|
31.5
|
9.1
|
74/63
|
292
|
|
12kv
|
12 see figure 1
|
125
|
31.5
|
9.1
|
74/63
|
292
|
|
12kv
|
12 see figure 1
|
160,200
|
31.5
|
9.1
|
86
|
292
|
|
24kv
|
24 see figure 2
|
6.3,10,16,20,25,31.5,40
|
31.5
|
9.1
|
53
|
442
|
|
24kv
|
24 see figure 1
|
50,63,71,80,100
|
31.5
|
9.1
|
74/63
|
442
|
|
24kv
|
24 see figure 1
|
125
|
31.5
|
9.1
|
74/63
|
442
|
|
24kv
|
24 see figure 1
|
160
|
31.5
|
9.1
|
86
|
442
|
|
46kv
|
46 see figure 3
|
3.15,6.3,10,16,20,25
|
31.5
|
9.1
|
53
|
537
|
|
46kv
|
46 see figure 3
|
31.5,40
|
31.5
|
9.1
|
74/63
|
537
|
|
46kv
|
46 see figure3
|
63
|
31.5
|
9.1
|
86
|
537
|
