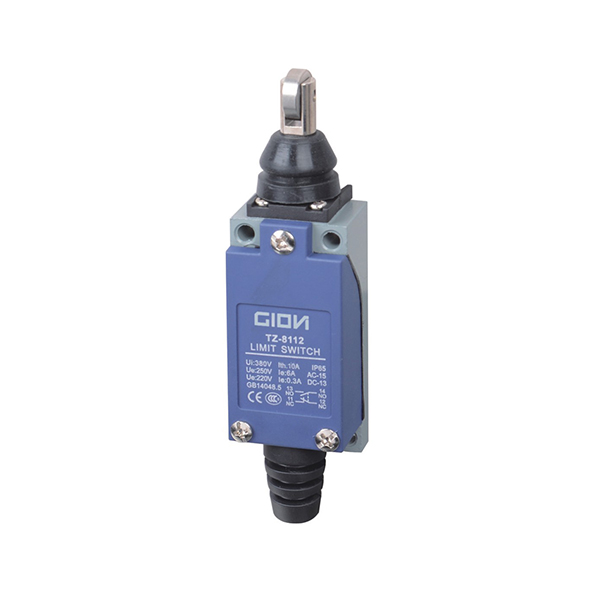

TZ-8112

Details Pictures Application Specitication Dimension

Model	TZ-8104	TZ-8108	TZ-8107	TZ-8111	TZ-8112/8122	TZ-8166/8167 /8168/8169
Triggering	30°convex trigger	30°convex trigger	Any moving part	At the end	30°convex trigger	Any moving part
Contact operation	Contacts attract Contracts separate
Max triggering speed	1.3m/s			0.25m/s		1.3m/s
Min restoring force	750g	750g	750g	900g	900g	150g
Min restoring force	100g	100g	100g	150g	150g
Weight (kg)	0.19	0.21	0.2	0.155	0.16	0.15
Wiring	Flexible rubber cable sleeve is suitable for cables of Φ6...9mm, each terminal can hold conductors of 2mm2 at most

Characteristics Of Contact Module
Rated operating characteristics	Inductive load： ~AC15,B300 (Ue=240V, Ie=1.5A) --DC-13,R300 (Ue=250V,Ie=0.1A) Resistive load：250V, 5A
Rated insulation voltage	Ui=500V, class of pollution is 3, comply with IEC 60947-1 Ui=300V, comply with UL508, CSA C22-2n°14
Insulation resistance	>100MΩ, at 500V
Operating frequency	120 times/min
Electrical life	1,000,000 times, AC-15 (Ue=240V, Ie=1.5A)
Contact resistance	≤25MΩ, 5V, 5mA, after ten million times of operation

Environmental Characteristics
Normative reference	Product	IEC60947-5-1, EN60947-5-1, UL508, CSAC22-2N°14
Normative reference	Components	IEC60204-1, EN60204-1
Ambient temperature	Function	-25...+70℃
Ambient temperature	Storage	-40...+70℃
Vibration resistance	Comply with IEC60068-2-6	55Hz, 1.5mm double-amplitude
Shock resistance	Comply with IEC60068-2-27	30gn 18ms, in any position
Degree of protection		IP65, comply with IEC60529
Mechanical life		15,000,000 times
