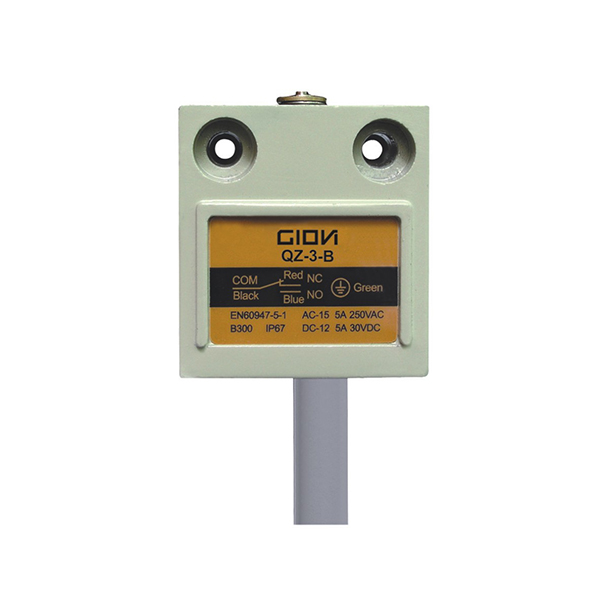

DPDS limit switch for multiple applications
|
|
|
|
|
|
|
Rugged alumunum alloy diecast housing
|
|
|
|
|
|
|
High mechanical strength
|
|
|
|
|
|
|
Oil resistance,waterproof and dustproof structure
|
|
|
|
|
|
|
Models
|
QZ-3101
|
QZ-3102
|
QZ-3103
|
QZ-3104(3108)
|
|
OF(Max.)
|
1200gf(11.77N)
|
1200gf(11.77N)
|
1200gf(11.77N)
|
580gf(5.69N)
|
|
RF(Min.)
|
450gf(4.41N)
|
450gf(4.41N)
|
450gf(4.41N)
|
150gf(1.47N)
|
|
PT(Max.)
|
1.8mm
|
1.8mm
|
1.8mm
|
25
|
|
OT(Min.)
|
3mm
|
3mm
|
3mm
|
40
|
|
MD(Max.)
|
0.2mm
|
0.2mm
|
0.2mm
|
3
|
|
OP
|
15.7±1mm
|
28.5±1mm
|
28.5±1mm
|
-
|
|
Models
|
QZ-3110
|
QZ-3111
|
QZ-3112
|
QZ-3113
|
QZ-3169
|
|
OF(Max.)
|
1200gf(11.77N)
|
1800gf(17.65N)
|
1800gf(17.65N)
|
1800gf(17.65N)
|
150gf(1.47N)
|
|
RF(Min.)
|
450gf(4.41N)
|
450gf(4.41N)
|
450gf(4.41N)
|
450gf(4.41N)
|
-
|
|
PT(Max.)
|
1.8mm
|
1.8mm
|
1.8mm
|
1.8mm
|
15°
|
|
OT(Min.)
|
3mm
|
3mm
|
3mm
|
3mm
|
-
|
|
MD(Max.)
|
0.2mm
|
0.2mm
|
0.2mm
|
0.2mm
|
-
|
|
OP
|
28.5±1mm
|
24.9±1mm
|
34.3±1mm
|
34.3±1mm
|
-
|
|
Ratings
|
|
|
Noninductive Load (A)
|
Inductive Load (A)
|
|
Rated voltage
|
Resistance Load
|
Lamp Load
|
Inductive Load
|
Motor Load
|
|
NC
|
NO
|
NC
|
NO
|
NC
|
NO
|
NC
|
NO
|
|
125 VAC
250 VAC
|
5 (0.1)
3
|
1.5
1
|
0.7
0.5
|
3
2
|
1.3
0.8
|
|
8 VDC
14 VDC
30 VDC
125 VDC
250 VDC
|
5 (0.1)
5 (0.1)
4 (0.1)
0.4
0.2
|
2
2
2
0.05
0.03
|
5
4
3
0.4
0.2
|
5
4
3
0.4
0.2
|
3
3
3
0.05
0.03
|
