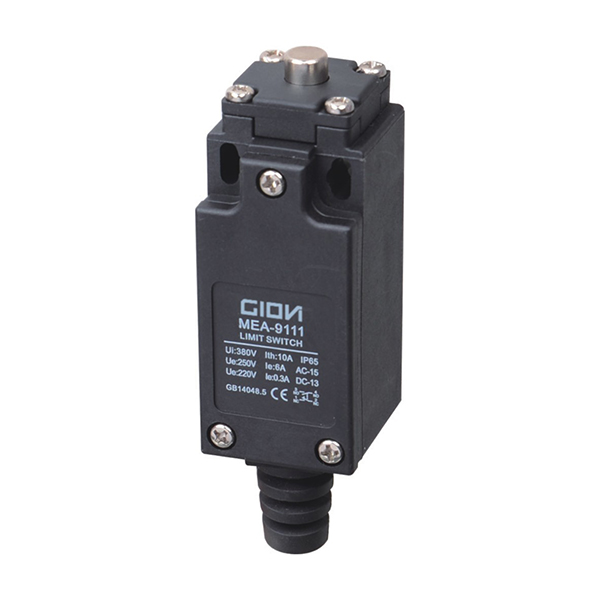

Double circuit type of limit switch
Highly rigid construction, consists of intensive plastic and aluminum cast (Head and cover snugly fit in box)
Small volume, water-proof and oil-proof construction
Built-in basic switch with double spring mechanism, longer mechanical life
Smooth operation with greater OT
Easy-to-wire circuit opening design
Wide varity of actuators, easily use
|
Characteristicw/Application
|
|
Total plastic enclosure, light weight switch
|
|
Wide choice of heads and actuators
|
|
Captive cover screws
|
|
Dustproof, oil-tight, water-resitant
|
|
|
Double contact
|
|
NO/NC contacts
|
|
Protection degree
|
|
IP66
|
|
Working range
|
|
6A 125 or 250VAC
|
|
Insulation resistance
|
|
100MΩ max at 500VDC
|
|
Max.operating freq.
|
Mechanical
|
120 times/m
|
|
Electrical
|
30 times/m
|
|
Life test-electrical mechanical
|
Mechanical
|
Over 10000000 times
|
|
Electrical
|
Over 5000000 times
|
|
Ambient openating temperature
|
|
-25℃~+70℃
|
