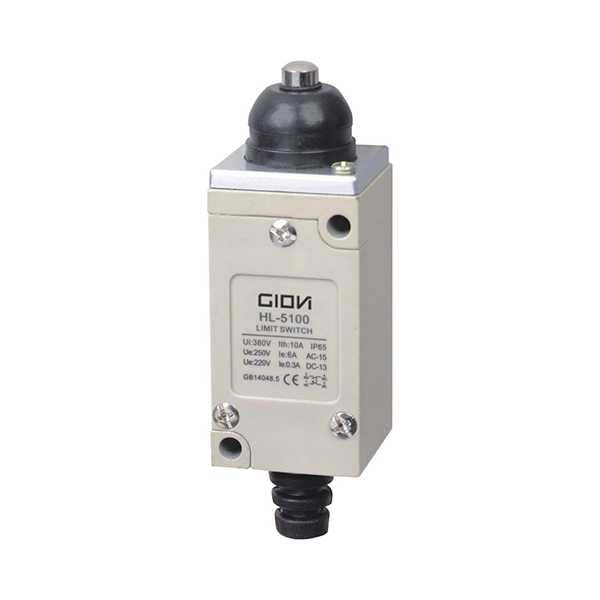

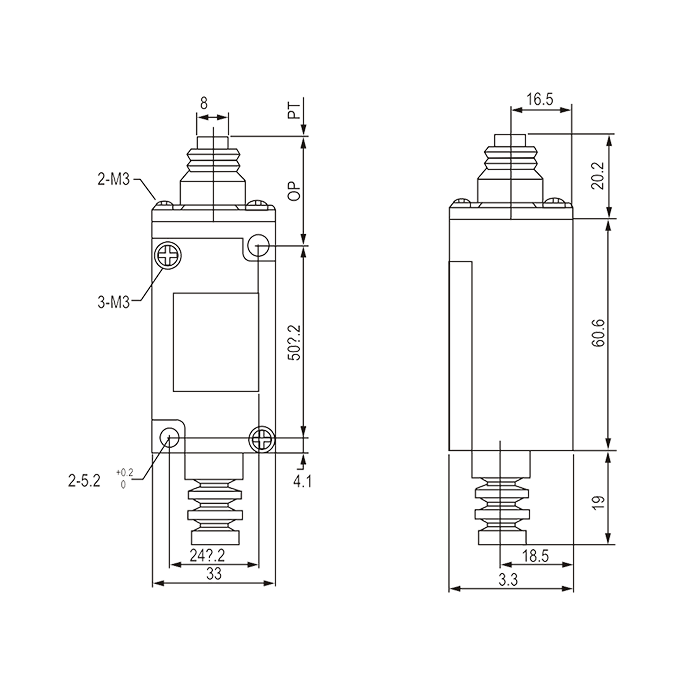

Double circuit type of limit switch
Highly rigid construction, consists of intensive plastic and aluminum cast (Head and cover snugly fit in box)
Small volume, water-proof and oil-proof construction
Built-in basic switch with double spring mechanism, longer mechanical life
Smooth operation with greater OT
Easy-to-wire circuit opening design
Wide varity of actuators, easily use
|
Characteristicw/Application
|
|
Operation speciality /Type
|
HL-5000
|
HL-5100
|
HL-5200
|
|
OF(max)
|
750g
|
900g
|
900g
|
|
RF(min)
|
100g
|
150g
|
150g
|
|
PT(max)
|
20°
|
1.5mm°
|
1.5mm°
|
|
OT(min)
|
50°
|
4mm°
|
4mm°
|
|
MD(max)
|
12°
|
1mm°
|
1mm°
|
|
OP
|
-
|
30±0.8mm
|
30±0.8mm
|
|
Characteristicw/Application
|
|
Protection degree
|
IP65
|
|
life
|
Mechanical
|
ten million times above
|
|
Electrical
|
Over 500000 times
|
|
operation speed
|
5mm~0.5m/s
|
|
|
operating frequency
|
Mechanical
|
120(times/m)
|
|
Electrical
|
30(times/m)
|
|
Insulation resistance
|
100MΩ DC500V
|
|
contact resistance
|
25MΩ(Initial value)
|
|
with stand voltage
(50/60Hz)
|
Between the terminals of same pole
|
AC 1,000V
|
|
Between charged metal parts
|
AC 1,500V
|
|
Between non-charged metal parts of each terminal
|
AC 1,500V
10~55Hz (amplitude 1.5mm)
|
|
vibration
|
misoperation
|
AC 250V 5A
|
|
load
|
|
AC 380V 5A
DC 125V 5A
DC 250V 5A
|
