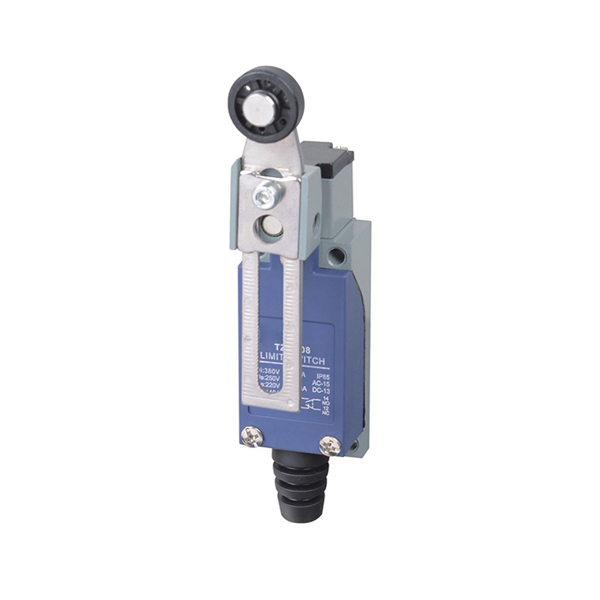

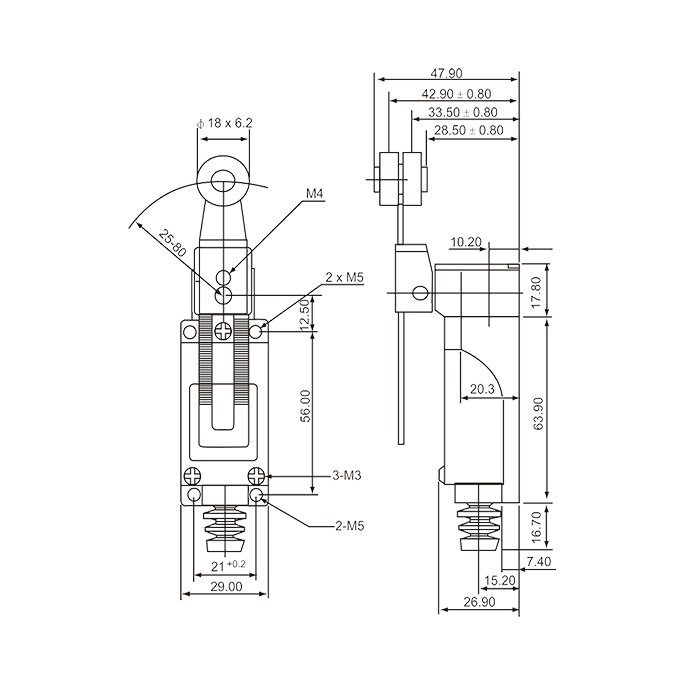

Double circuit type of limit switch
Highly rigid construction, consists of intensive plastic and aluminum cast (Head and cover snugly fit in box)
Small volume, water-proof and oil-proof construction
Built-in basic switch with double spring mechanism, longer mechanical life
Smooth operation with greater OT
Easy-to-wire circuit opening design
Wide varity of actuators, easily use
|
Model
|
TZ-8104
|
TZ-8108
|
TZ-8107
|
TZ-8111
|
TZ-8112/8122
|
TZ-8166/8167 /8168/8169
|
|
Triggering
|
30°convex trigger
|
30°convex trigger
|
Any moving part
|
At the end
|
30°convex trigger
|
Any moving part
|
|
Contact operation
|
Contacts attract Contracts separate
|
|
Max triggering speed
|
1.3m/s
|
0.25m/s
|
1.3m/s
|
|
|
|
|
Min restoring force
|
750g
|
750g
|
750g
|
900g
|
900g
|
150g
|
|
Min restoring force
|
100g
|
100g
|
100g
|
150g
|
150g
|
|
|
Weight (kg)
|
0.190
|
0.210
|
0.200
|
0.155
|
0.160
|
0.150
|
|
Wiring
|
Flexible rubber cable sleeve is suitable for cables of Φ6...9mm, each terminal can hold conductors of 2mm2 at most
|
|
Characteristics Of Contact Module
|
|
Rated operating
characteristics
|
Inductive load：
~AC15,B300 (Ue=240V, Ie=1.5A) --DC-13,R300 (Ue=250V,Ie=0.1A)
Resistive load：250V, 5A
|
|
Rated insulation voltage
|
Ui=500V, class of pollution is 3, comply with IEC 60947-1
Ui=300V, comply with UL508, CSA C22-2n°14
|
|
Insulation resistance
|
>100MΩ, at 500V
|
|
Operating frequency
|
120 times/min
|
|
Electrical life
|
1,000,000 times, AC-15 (Ue=240V, Ie=1.5A)
|
|
Contact resistance
|
≤25MΩ, 5V, 5mA, after ten million times of operation
|
|
Environmental Characteristics
|
|
Normative
reference
|
Product
|
IEC60947-5-1, EN60947-5-1,
UL508, CSAC22-2N°14
|
|
Components
|
IEC60204-1, EN60204-1
|
|
Ambient
temperature
|
Function
|
-25...+70℃
|
|
Storage
|
-40...+70℃
|
|
Vibration resistance
|
Comply with IEC60068-2-6
|
55Hz, 1.5mm double-amplitude
|
|
Shock resistance
|
Comply with IEC60068-2-27
|
30gn 18ms, in any position
|
|
Degree of protection
|
|
IP65, comply with IEC60529
|
|
Mechanical life
|
|
15,000,000 times
|
